Expansion tank for BMW 5 Series E12 528i (1981)

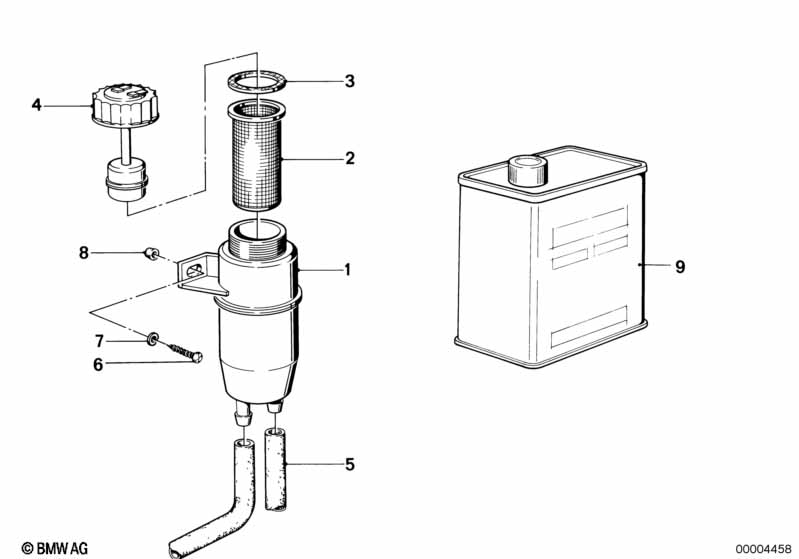

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 08/1978 | 34321120482 | $174.10 | Shop at ECS Tuning | ||||
| 02 | Strainer | 1 | 08/1978 | 34321122044 | $3.37 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket | X | 08/1978 | 34321102798 | $2.82 | Shop at ECS Tuning | ||||
| 04 | Cap with warning switch | 1 | 08/1978 | 34321122045 | $30.41 | Shop at ECS Tuning | ||||
| 05 | Hose | 7.5X13.5 | X | 08/1978 | 35006857512 | Shop at ECS Tuning | ||||
| 06 | Hex head screw | ST6,3X13-C | 2 | 08/1978 | 07119916823 | $0.13 | ENDED | Shop at ECS Tuning | ||
| 07 | Washer | A6,4-200HV-ZNS3 | 2 | 08/1978 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 08 | Cap | 2 | 08/1978 | 51135676199 | $0.79 | Shop at ECS Tuning | ||||
| 09 | Brake fluid | 250 ML | X | 08/1978 | 81229407510 | $4.63 | ENDED | Shop at ECS Tuning | ||
| 09 | Brake fluid | 500 ML | X | 08/1978 | 81229407511 | $9.65 | ENDED | Shop at ECS Tuning | ||
| 09 | Brake fluid | 1000 ML | X | 08/1978 | 81229407512 | $14.84 | ENDED | Shop at ECS Tuning | ||
| 09 | Brake fluid DOT4 LV, low viscosity | 5000ML | X | 08/1978 | 83132405978 | ENDED | Shop at ECS Tuning | |||
| 09 | Brake fluid DOT4, low-viscosity EU | 250ML | X | 08/1978 | 83135A824F2 | Shop at ECS Tuning | ||||
| 09 | Brake fluid DOT4, low-viscosity EU | 500ML | X | 08/1978 | 83135A824F3 | Shop at ECS Tuning | ||||
| 09 | Brake fluid DOT4, low-viscosity EU | 1000ML | X | 08/1978 | 83135A82511 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528i Expansion tank?
- This technical diagram illustrates the Expansion tank within the Brakes group for the 5 Series E12 528i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #34321120482).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 5 Series E12 528i produced during 1981. These technical specifications ensure that parts like the Expansion tank (34321120482) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 5 Series E12 528i, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 34321120482 for the Brakes section.
