Expansion tank for BMW 7 Series E23 732i (1982)

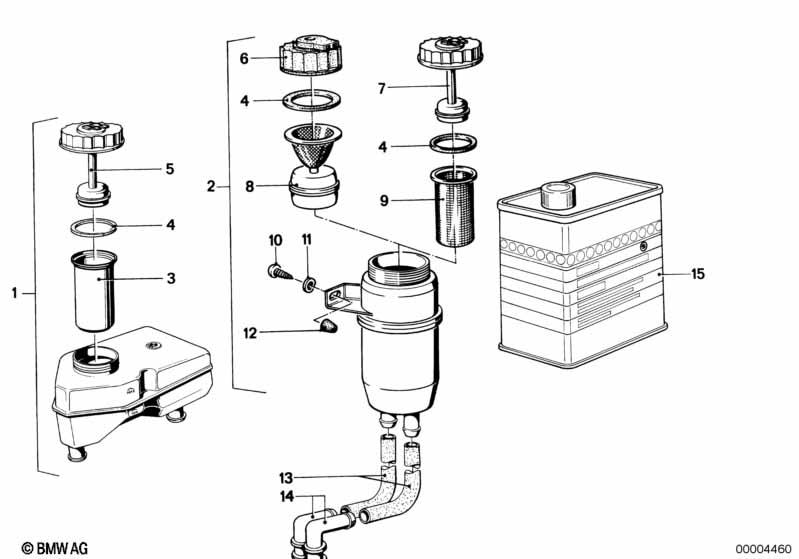

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Expansion tank | 1 | 09/1980 | 34321152760 | Shop at ECS Tuning | |||||
| 04 | Gasket | 1 | 34321102798 | $2.82 | Shop at ECS Tuning | |||||
| 07 | Cap with warning switch | 1 | 08/1978 | 34321122045 | $30.41 | Shop at ECS Tuning | ||||
| 09 | Strainer | 1 | 08/1978 | 34321122044 | $3.37 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex head screw | ST6,3X13-C | 2 | 07119916823 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 11 | Washer | 2 | 64541351873 | ENDED | Shop at ECS Tuning | |||||
| 12 | Cap | 2 | 51135676199 | $0.79 | Shop at ECS Tuning | |||||
| 13 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 14 | Connector | 2 | 34321118275 | $2.13 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 732i Expansion tank?
- This technical diagram illustrates the Expansion tank within the Brakes group for the 7 Series E23 732i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #34321152760).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 7 Series E23 732i produced during 1982. These technical specifications ensure that parts like the Expansion tank (34321152760) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 7 Series E23 732i, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 34321152760 for the Brakes section.
