Power brake for BMW 3 Series E21 320 (1977)

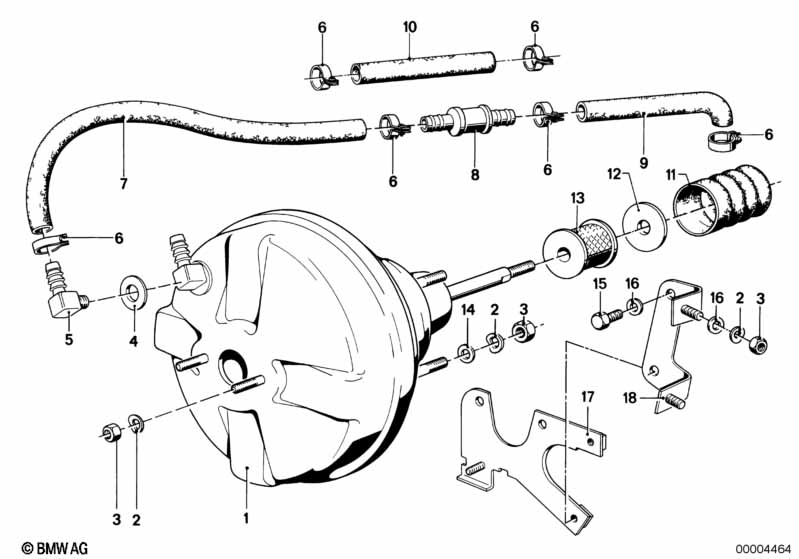

This Power brake technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | 1 | 34331114258 | $650.07 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | ATE | 1 | 34331154250 | $6.39 | ENDED | Shop at ECS Tuning | |||
| 02 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M8-8-ZNS3 | 6 | 12/1983 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 03 | Hex nut | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 04 | Gasket | 1 | 34336893085 | Shop at ECS Tuning | ||||||
| 05 | T-Connector | 1 | 34331113652 | $2.50 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 07 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 08 | non-return valve | 1 | 34331151533 | Shop at ECS Tuning | ||||||
| 09 | Connector | 1 | 34331116003 | $7.57 | Shop at ECS Tuning | |||||
| 11 | Protection cap | ATE | 1 | 34331153317 | $8.45 | Shop at ECS Tuning | ||||
| 12 | Absorber | 1 | 34334650147 | $7.88 | Shop at ECS Tuning | |||||
| 13 | Air cleaner | 1 | 34331113651 | $2.35 | ENDED | Shop at ECS Tuning | ||||
| 14 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 16 | Washer | 4 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 17 | Holder | 1 | 34331150446 | $6.58 | ENDED | Shop at ECS Tuning | ||||
| 18 | Bracket | 1 | 34331117169 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Power brake?
- This technical diagram illustrates the Power brake within the Brakes group for the 3 Series E21 320 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34331114258).
- Which models use the hardware listed in this Power brake?
- The hardware and components featured in the Power brake are specific to the 3 Series E21 320 produced during 1977. These technical specifications ensure that parts like the Power brake (34331114258) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power brake assembly?
- Each item in the Power brake corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34331114258 for the Brakes section.
