Power brake unit depression for BMW 5 Series E12 520 (1976)

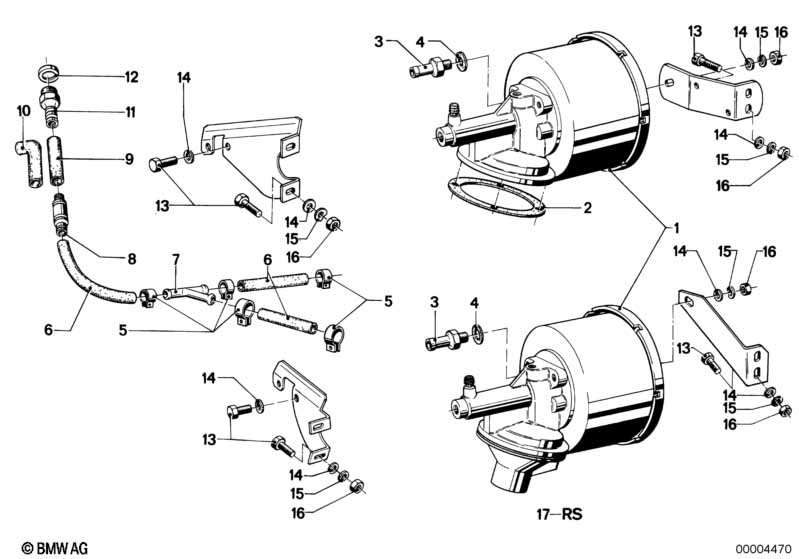

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | ATE T 50 | 2 | 08/1978 | 34331111958 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket | 2 | 08/1978 | 34331101071 | ENDED | Shop at ECS Tuning | ||||
| 03 | Connector | 2 | 08/1978 | 34331103316 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A14X20-CU | 2 | 08/1978 | 07119963226 | $0.18 | Shop at ECS Tuning | |||
| 05 | Hose clamp | L15-19 | 8 | 08/1978 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 06 | Vacuum hose | 12X19 | X | 08/1978 | 34331115926 | $28.71 | +core | Shop at ECS Tuning | ||
| 07 | Distribution piece | 1 | 08/1978 | 11611286452 | ENDED | Shop at ECS Tuning | ||||
| 08 | non-return valve | 1 | 08/1978 | 34331151533 | Shop at ECS Tuning | |||||
| 09 | Vacuum hose | 12X19 | X | 08/1978 | 34331115926 | $28.71 | +core | Shop at ECS Tuning | ||
| 11 | Connector | 1 | 08/1978 | 34331102538 | $18.21 | ENDED | Shop at ECS Tuning | |||
| 12 | Gasket ring | A22X27-AL | 1 | 08/1978 | 07119963355 | $0.36 | Shop at ECS Tuning | |||
| 13 | Hex bolt | M8X16-10.9-PHR | X | 08/1978 | 07119913612 | $0.62 | Shop at ECS Tuning | |||
| 14 | Washer | X | 08/1978 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | |||
| 15 | Wave washer | 8,4X15-ZNS3 | X | 08/1978 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 16 | Hex nut | M8-8-ZNS3 | X | 08/1978 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 16 | Hex nut | M8-8-ZNNIV SI | X | 08/1978 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 17 | Repair kit power brake unit | ATE T 50 | 2 | 08/1978 | 34331112187 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
