Brake servo unit/Mounting for BMW 5 Series E12 520 (1981)

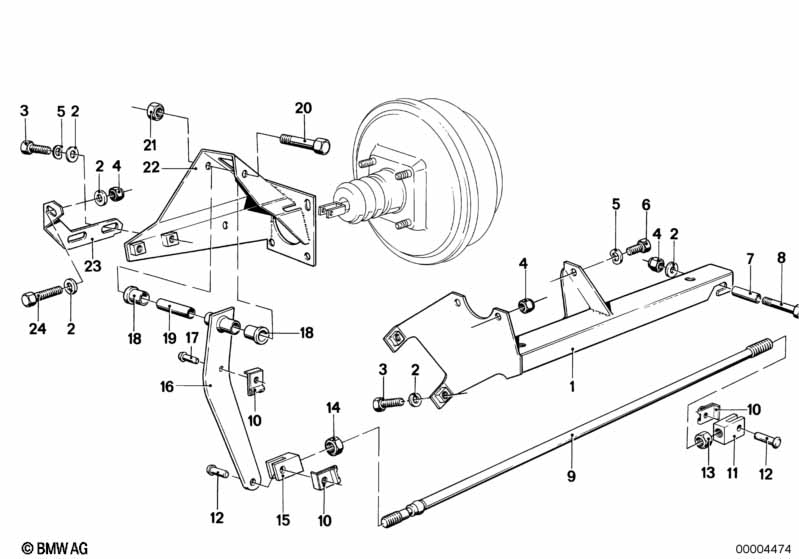

This Brake servo unit/Mounting technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder | 1 | 08/1979 | 34331122164 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | 4 | 08/1979 | 35111118331 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X18 | 2 | 08/1979 | 07119913632 | $0.17 | ENDED | Shop at ECS Tuning | ||
| 04 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 08/1979 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 05 | Wave washer | 8,4X15-ZNS3 | 1 | 08/1979 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X10 | 1 | 08/1979 | 07119913610 | $0.32 | ENDED | Shop at ECS Tuning | ||
| 07 | Spacer sleeve | 1 | 08/1979 | 34331119453 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X60-ZNNIV SI | 1 | 08/1979 | 07119905974 | Shop at ECS Tuning | ||||
| 09 | Pull rod | 1 | 08/1979 | 34331119164 | $11.79 | ENDED | Shop at ECS Tuning | |||
| 10 | Clamp | 2 | 08/1979 | 34331120538 | $0.60 | Shop at ECS Tuning | ||||
| 11 | Forkhead | L=44MM | 1 | 08/1979 | 35211154097 | $2.77 | Shop at ECS Tuning | |||
| 12 | Pin | 2 | 08/1979 | 35211110925 | $1.44 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M10-8-ZNS | 1 | 08/1979 | 07119915558 | $0.88 | Shop at ECS Tuning | |||
| 15 | Forkhead | 1 | 08/1979 | 35211110924 | $5.44 | ENDED | Shop at ECS Tuning | |||
| 16 | Lever | 1 | 08/1979 | 34331119430 | ENDED | Shop at ECS Tuning | ||||
| 17 | Pin | 1 | 08/1979 | 34331101858 | $1.42 | Shop at ECS Tuning | ||||
| 18 | Bushing | D=18,1MM | 2 | 08/1979 | 35211109541 | $1.84 | Shop at ECS Tuning | |||
| 19 | Spacer sleeve | 1 | 08/1979 | 34331119427 | ENDED | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M10X50 | 1 | 08/1979 | 07119913859 | $0.89 | Shop at ECS Tuning | |||
| 21 | Self-locking hex nut | M10 | 1 | 08/1979 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 22 | Holder | 1 | 08/1979 | 34331122161 | ENDED | Shop at ECS Tuning | ||||
| 23 | Support | 1 | 08/1979 | 34331122080 | ENDED | Shop at ECS Tuning | ||||
| 24 | Hex bolt | M8X20-ZNNIV SI | 1 | 08/1979 | 07119903039 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
