Power brake unit depression for BMW 7 Series E32 735iL (1992)

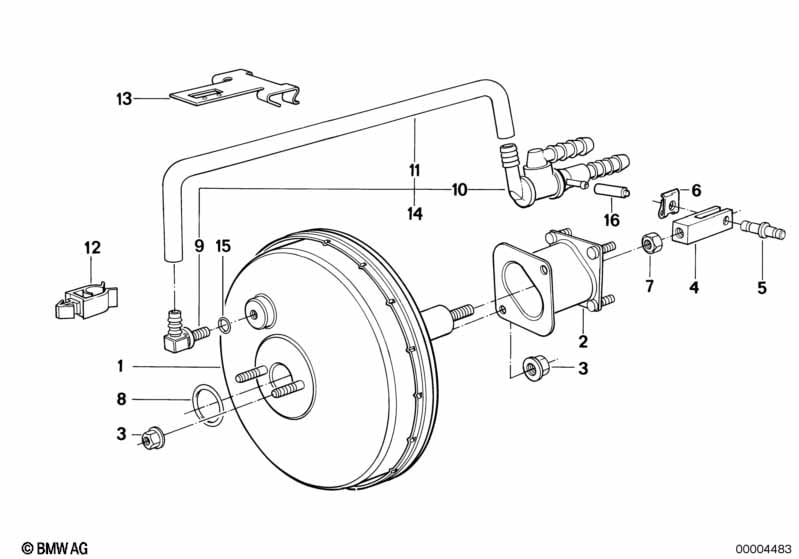

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | GIRLING | 1 | 03/1990 | 34331160625 | $817.67 | ENDED | Shop at ECS Tuning | ||
| 02 | Intermediate piece | GIRLING | 1 | 03/1990 | 34331160561 | ENDED | Shop at ECS Tuning | |||
| 03 | Self-locking collar nut | M8-8-ZNS3 | 4 | 03/1988 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 4 | 03/1988 | 07119905374 | Shop at ECS Tuning | ||||
| 04 | Forkhead | L=50MM | 1 | 03/1988 | 34331156826 | $3.50 | Shop at ECS Tuning | |||
| 05 | Pin | 1 | 09/1989 | 34331161802 | $4.55 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 1 | 03/1988 | 34331120538 | $0.60 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M10-8-ZNS | 1 | 03/1988 | 07119915558 | $0.88 | Shop at ECS Tuning | |||
| 08 | Brake master cylinder o-ring | 1 | 03/1988 | 34311159007 | $3.15 | Shop at ECS Tuning | ||||
| 09 | T-Connector | 1 | 03/1988 | 34331158930 | $4.53 | Shop at ECS Tuning | ||||
| 10 | non-return valve | 1 | 03/1988 | 34331158106 | $74.05 | Shop at ECS Tuning | ||||
| 11 | Vacuum hose | 12X19 | X | 03/1988 | 34331115926 | $28.71 | +core | Shop at ECS Tuning | ||
| 12 | Cable holder | D=10MM | 1 | 03/1988 | 61131269273 | $1.97 | Shop at ECS Tuning | |||
| 13 | Cable holder | 1 | 03/1988 | 34331158381 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 15 | Gasket ring | 1 | 03/1988 | 34331158929 | $3.15 | Shop at ECS Tuning |
