Parking brake/control for BMW 7 Series E23 728iS (1982)

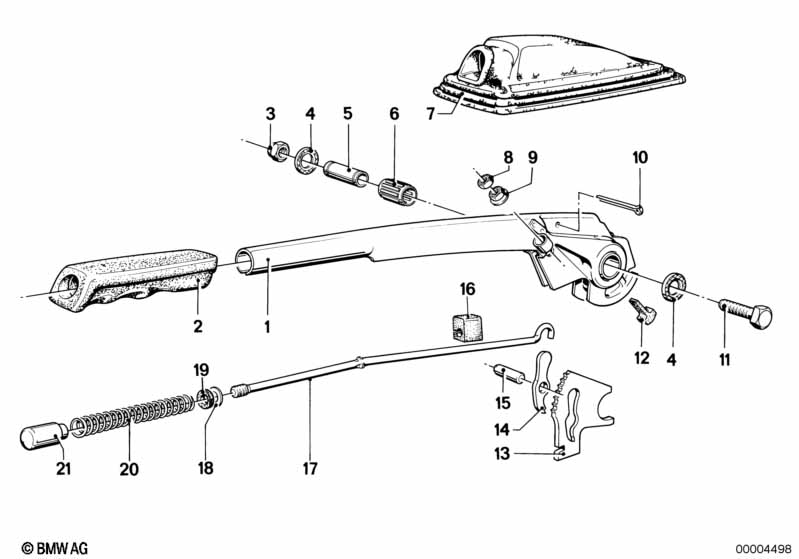

This Parking brake/control technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Handbrake lever | 1 | 34411117184 | $20.59 | ENDED | Shop at ECS Tuning | ||||
| 02 | Plastic handbrake handle | 1 | 34411116435 | $5.58 | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Washer | 10 | 2 | 34411117858 | ENDED | Shop at ECS Tuning | ||||
| 05 | Guide ring | 1 | 34411121034 | $3.39 | ENDED | Shop at ECS Tuning | ||||
| 06 | Needle bearing | 15.5X20X18 | 1 | 11331261712 | $29.92 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6 | 2 | 34411151208 | $0.15 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M6 | 2 | 34411151209 | $4.63 | Shop at ECS Tuning | ||||
| 10 | Split pin | 3,2X18 | 1 | 07119945193 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Guide | 1 | 34411117897 | $0.63 | Shop at ECS Tuning | |||||
| 13 | Ratched | 1 | 34411116429 | $6.27 | ENDED | Shop at ECS Tuning | ||||
| 14 | Ratched-pin | 1 | 34411116428 | $22.98 | ENDED | Shop at ECS Tuning | ||||
| 15 | Pin | 1 | 34411114413 | $0.57 | Shop at ECS Tuning | |||||
| 16 | Rubber seal | 1 | 34411120555 | $0.39 | ENDED | Shop at ECS Tuning | ||||
| 17 | Rod | 1 | 34411116427 | $5.89 | ENDED | Shop at ECS Tuning | ||||
| 18 | Washer | 8,4 140HV | 1 | 07119931684 | $0.40 | Shop at ECS Tuning | ||||
| 19 | Rubber washer | 1 | 34414045712 | $0.20 | Shop at ECS Tuning | |||||
| 20 | Compression spring | 1 | 34411116434 | $8.47 | Shop at ECS Tuning | |||||
| 21 | Push-button | 1 | 34411116436 | $1.00 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
