Parking brake/control for BMW 5 Series E12 528i (1981)

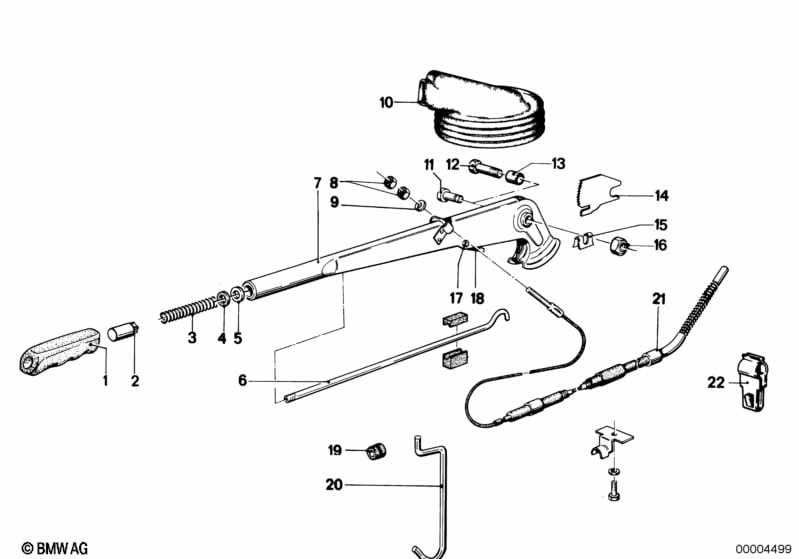

This Parking brake/control technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plastic handbrake handle | 1 | 03/1976 | 34411116435 | $5.58 | Shop at ECS Tuning | ||||
| 02 | Push-button | 1 | 03/1976 | 34411116436 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Compression spring | 1 | 03/1976 | 34411116434 | $8.47 | Shop at ECS Tuning | ||||
| 04 | Rubber washer | 1 | 34414045712 | $0.20 | Shop at ECS Tuning | |||||
| 05 | Washer | 8,4 140HV | 1 | 07119931684 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Rod | 1 | 34411152892 | $0.95 | ENDED | Shop at ECS Tuning | ||||
| 07 | Handbrake lever | 1 | 03/1976 | 34411117745 | $71.68 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 10 | Protection cap | 1 | 34411101501 | $27.58 | ENDED | Shop at ECS Tuning | ||||
| 11 | Pin | 1 | 34411104265 | $0.79 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M10X40 | 1 | 31111137888 | $3.33 | Shop at ECS Tuning | ||||
| 13 | Spacer tube | 1 | 34411118529 | $1.87 | Shop at ECS Tuning | |||||
| 14 | Ratched | 1 | 34411118530 | ENDED | Shop at ECS Tuning | |||||
| 14 | Ratched | 1 | 34411151769 | $98.52 | Shop at ECS Tuning | |||||
| 15 | Circlip | 10-ZNS3 | 2 | 07119904911 | $0.27 | Shop at ECS Tuning | ||||
| 16 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 17 | Pin | 1 | 34411114413 | $0.57 | Shop at ECS Tuning | |||||
| 18 | Ratched-pin | 1 | 34411103985 | $61.95 | ENDED | Shop at ECS Tuning | ||||
| 19 | Grommet | 3 | 34411102688 | $2.83 | ENDED | Shop at ECS Tuning | ||||
| 20 | Hook | 3 | 34411119369 | $0.66 | Shop at ECS Tuning | |||||
| 20 | Hook | 1 | 34411151535 | $0.70 | ENDED | Shop at ECS Tuning |
