Parking brake/brake shoes for BMW 3 Series E30 320i (1992)

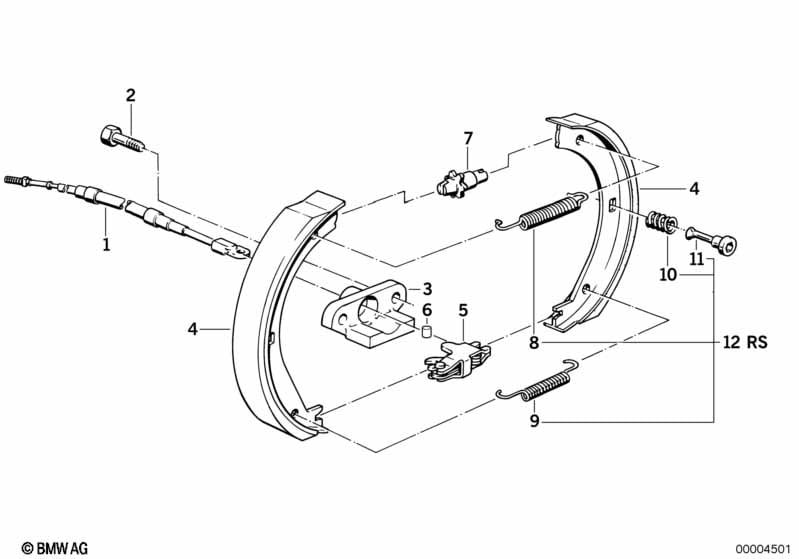

This Parking brake/brake shoes technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO DISK BRAKE | |||||||||
| 01 | Bowden cable | 2 | 34411158421 | $34.54 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X22 | 4 | 34411121511 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Support | 2 | 34411163978 | $10.36 | Shop at ECS Tuning | |||||
| 04 | Repair kit brake shoe asbestos-free | 1 | 34411159467 | $93.33 | ENDED | Shop at ECS Tuning | ||||
| 05 | Expanding lock | 2 | 34416868624 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Pin | 2 | 34411100640 | $1.67 | Shop at ECS Tuning | |||||
| 06 | Pin | 2 | 34411100640 | $1.67 | Shop at ECS Tuning | |||||
| 07 | Adjusting screw | 2 | 34411100550 | $25.20 | ENDED | Shop at ECS Tuning | ||||
| 07 | Adjusting screw | 2 | 34416851438 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Clip | 2 | 34411100554 | $7.36 | Shop at ECS Tuning | |||||
| 08 | Tension spring | 2 | 34411102308 | $7.00 | Shop at ECS Tuning | |||||
| 09 | Tension spring | 2 | 34411121900 | $11.73 | Shop at ECS Tuning | |||||
| 10 | Compression spring | 4 | 34411100122 | $0.70 | Shop at ECS Tuning | |||||
| 11 | Spiral pin with compression spring | L=28MM | 4 | 02/1994 | 34406751588 | $1.32 | ENDED | Shop at ECS Tuning | ||
| 11 | Spiral pin with compression spring | 4 | 34406794950 | Shop at ECS Tuning | ||||||
| 12 | Repair kit springs | 1 | 34419064266 | $38.69 | ENDED | Shop at ECS Tuning | ||||
