Front brake pad wear sensor/ATE for BMW 3 Series E21 323i (1979)

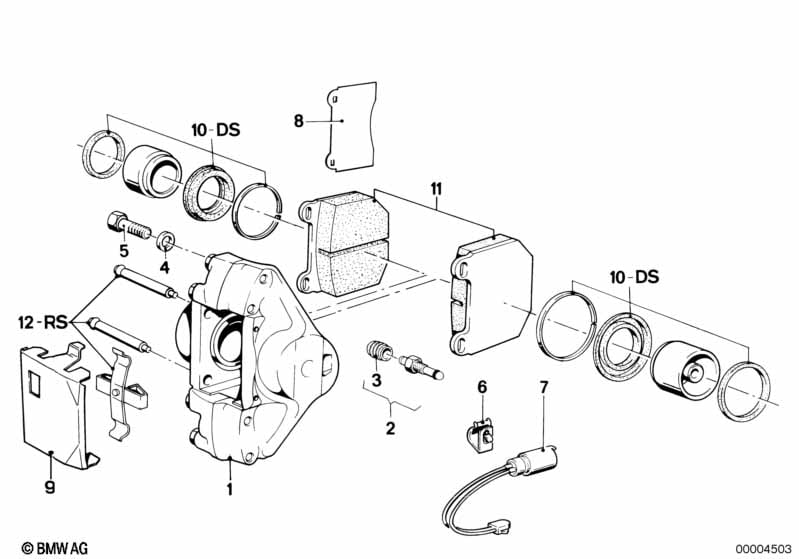

This Front brake pad wear sensor/ATE technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ATE | |||||||||
| 01 | Caliper with out brake pads left | 1 | 34111150257 | $387.82 | ENDED | Shop at ECS Tuning | ||||
| 01 | Caliper with out brake pads right | 1 | 34111150258 | $424.08 | ENDED | Shop at ECS Tuning | ||||
| 01 | Set AT-caliper asbestos-free left/right | 1 | 34119059180 | ENDED | Shop at ECS Tuning | |||||
| 02 | Ventilation valve | SW7 | 2 | 34111153197 | $7.72 | Shop at ECS Tuning | ||||
| 03 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 04 | Wave washer | B12-ZN | 4 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning | ||||
| 06 | Cable clamp | D=10-12MM | 2 | 61131361897 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 07 | Brake pad wear sensor | 1 | 34351179821 | $10.93 | Shop at ECS Tuning | |||||
| 08 | Protection plate | 4 | 34111118711 | $5.17 | Shop at ECS Tuning | |||||
| 09 | Covering plate | 2 | 34111152333 | $13.59 | ENDED | Shop at ECS Tuning | ||||
| 10 | Repair set brake caliper | 2 | 34111116618 | $30.33 | Shop at ECS Tuning | |||||
| 11 | Repair kit, brake pads asbestos-free | TEXTAR T444 | 1 | 34111159249 | $99.15 | Shop at ECS Tuning | ||||
| 11 | Repair kit, brake pads asbestos-free | TEXTAR POLITEX | 1 | 34111159251 | $64.45 | ENDED | Shop at ECS Tuning | |||
| 12 | Set mounting parts | 1 | 34111150542 | $30.95 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
