Handbrake lever for BMW 5 Series E34 520i (1993)

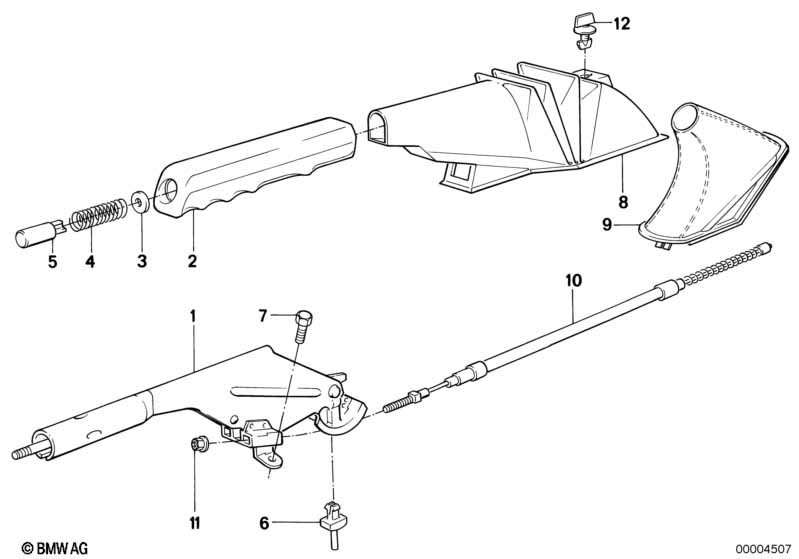

This Handbrake lever technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Handbrake lever | 1 | 34411156292 | Shop at ECS Tuning | ||||||
| 02 | Plastic handbrake handle | 1 | 34411116435 | $5.58 | Shop at ECS Tuning | |||||
| 03 | Rubber washer | 1 | 34414045712 | $0.20 | Shop at ECS Tuning | |||||
| 04 | Compression spring | 1 | 34411150662 | $0.40 | Shop at ECS Tuning | |||||
| 05 | Push-button | 1 | 34411152393 | $2.22 | Shop at ECS Tuning | |||||
| 06 | Guide | 1 | 34411117897 | $0.63 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M8X18-SB-Z1 | 2 | 07119915072 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Protection cap | 1 | 34411156461 | $10.27 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cover | 0203 SCHWARZ | 1 | 34411158169 | $47.81 | ENDED | Shop at ECS Tuning | |||
| 09 | Leather handbrake lever cover | KARMESINROT | 1 | 34411159211 | ENDED | Shop at ECS Tuning | ||||
| 09 | Leather handbrake lever cover | SILBER | 1 | 09/1990 | 34411156724 | $59.60 | ENDED | Shop at ECS Tuning | ||
| 09 | Cover | 0203 SCHWARZ | 1 | 09/1990 | 34411158169 | $47.81 | ENDED | Shop at ECS Tuning | ||
| 09 | Cover | 0203 SCHWARZ | 1 | 09/1990 | 34411158169 | $47.81 | ENDED | Shop at ECS Tuning | ||
| 09 | Cover | BRASIL | 1 | 09/1990 | 34411160759 | ENDED | Shop at ECS Tuning | |||
| 10 | Hand brake bowden cable | 2 | 34411162006 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | M6 Z1-ZNNIV SI | 2 | 07146778500 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Rotary knob | 1 | 63211376879 | $0.65 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
