Parking brake/control for BMW 3 Series E30 325i (1990)

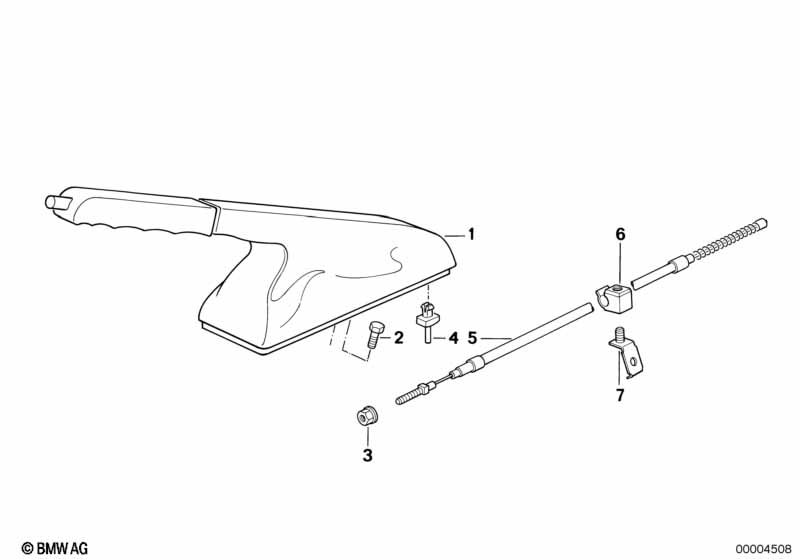

This Parking brake/control technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Walk-nappa handbrake lever | SCHWARZ | 1 | 06/1988 | 34412237573 | $380.44 | ENDED | Shop at ECS Tuning | ||
| 01 | Walk-nappa handbrake lever | SILBER | 1 | 06/1988 | 34412237574 | $243.29 | ENDED | Shop at ECS Tuning | ||
| 01 | Walk-nappa handbrake lever | SCHWARZ | 1 | 06/1988 | 34412237573 | $380.44 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex bolt with washer | M8X18-SB-Z1 | 3 | 06/1988 | 07119915072 | $0.30 | Shop at ECS Tuning | |||
| 03 | Hex nut with plate | M6 Z1-ZNNIV SI | 2 | 06/1988 | 07146778500 | $0.47 | Shop at ECS Tuning | |||
| 04 | Guide | 1 | 06/1988 | 34411117897 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Bowden cable | 2 | 06/1988 | 34411158421 | $34.54 | Shop at ECS Tuning | ||||
| 06 | Tubing support | 2 | 06/1988 | 34411154158 | $0.68 | Shop at ECS Tuning | ||||
| 07 | Bracket | 2 | 06/1988 | 34411153880 | $0.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Parking brake/control?
- This technical diagram illustrates the Parking brake/control within the Brakes group for the 3 Series E30 325i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Walk-nappa handbrake lever (Part #34412237573).
- Which models use the hardware listed in this Parking brake/control?
- The hardware and components featured in the Parking brake/control are specific to the 3 Series E30 325i produced during 1990. These technical specifications ensure that parts like the Walk-nappa handbrake lever (34412237573) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Parking brake/control assembly?
- Each item in the Parking brake/control corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Walk-nappa handbrake lever by locating its position on the schematic, which then links to the official BMW part number 34412237573 for the Brakes section.
