Handbrake lever for BMW 8 Series E31 850Ci (1994)

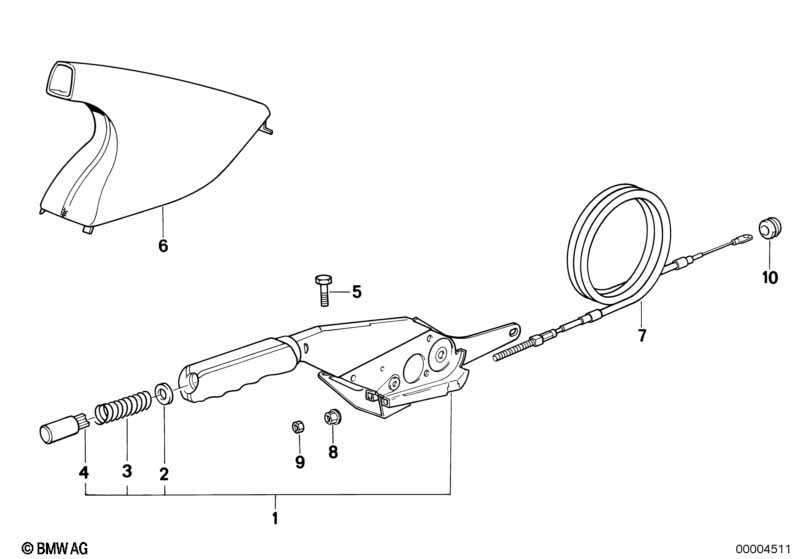

This Handbrake lever technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Leather handbrake lever | 1 | 34411159326 | $139.13 | ENDED | Shop at ECS Tuning | ||||
| 02 | Base | 1 | 34411158013 | $0.57 | Shop at ECS Tuning | |||||
| 03 | Compression spring | 1 | 34411155210 | $0.28 | Shop at ECS Tuning | |||||
| 04 | Push-button | 1 | 34411152393 | $2.22 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X18-SB-Z1 | 1 | 07119915072 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 34411158676 | $68.43 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bowden cable | 2 | 34411158672 | $35.27 | Shop at ECS Tuning | |||||
| 08 | Hex nut | M6 | 2 | 34411151209 | $4.63 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M6 | 2 | 34411151208 | $0.15 | Shop at ECS Tuning | ||||
| 10 | Rubber grommet | D=22MM | 2 | 34411160117 | $1.03 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
