Front brake pad wear sensor for BMW 8 Series E31 850Ci

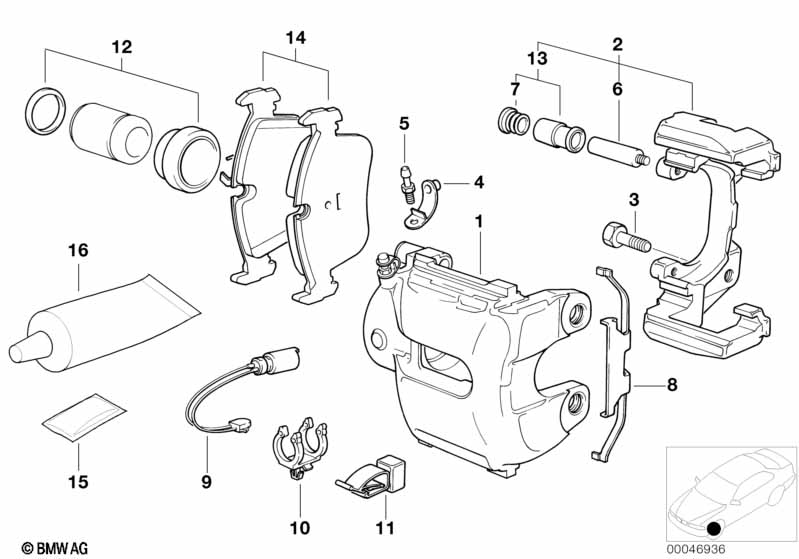

This Front brake pad wear sensor technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper housing left | ATE | 1 | 34111160325 | $516.91 | Shop at ECS Tuning | ||||
| 01 | Caliper housing right | ATE | 1 | 34111160326 | $516.91 | ENDED | Shop at ECS Tuning | |||
| 02 | Calliper carrier | ATE | 2 | 34111160327 | $245.82 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M12X1,5X41 10.9 | 4 | 34111151604 | $1.77 | Shop at ECS Tuning | ||||
| 04 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 05 | Ventilation valve | SW7 | 2 | 34111153197 | $7.72 | Shop at ECS Tuning | ||||
| 06 | Guiding bolt | 4 | 34111157041 | $20.02 | Shop at ECS Tuning | |||||
| 07 | Protective plug | 4 | 34111154979 | $1.80 | Shop at ECS Tuning | |||||
| 08 | Clip | 2 | 34111163488 | $10.52 | Shop at ECS Tuning | |||||
| 09 | Brake pad wear sensor | 1 | 09/1991 | 34351180432 | $17.24 | Shop at ECS Tuning | ||||
| 09 | Brake pad wear sensor | 1 | 09/1991 | 34351181823 | $17.24 | Shop at ECS Tuning | ||||
| 10 | Cable holder | D=13MM | 1 | 09/1991 | 61136784633 | $0.63 | Shop at ECS Tuning | |||
| 12 | Repair set brake caliper | 2 | 34111157037 | $25.42 | Shop at ECS Tuning | |||||
| 13 | Repair kit guide bush | 2 | 03/1994 | 34111157038 | $25.37 | ENDED | Shop at ECS Tuning | |||
| 14 | Repair kit, brake pads asbestos-free | JURID 514 | 1 | 34111160296 | $126.99 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Brake pad paste | 3G | 1 | 83192158851 | Shop at ECS Tuning | |||||
| 15 | Brake pad paste | 3G | 2 | 03/1994 | 83192158851 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
