Brake pipe front ABS/ASC+T for BMW 8 Series E31 850Ci

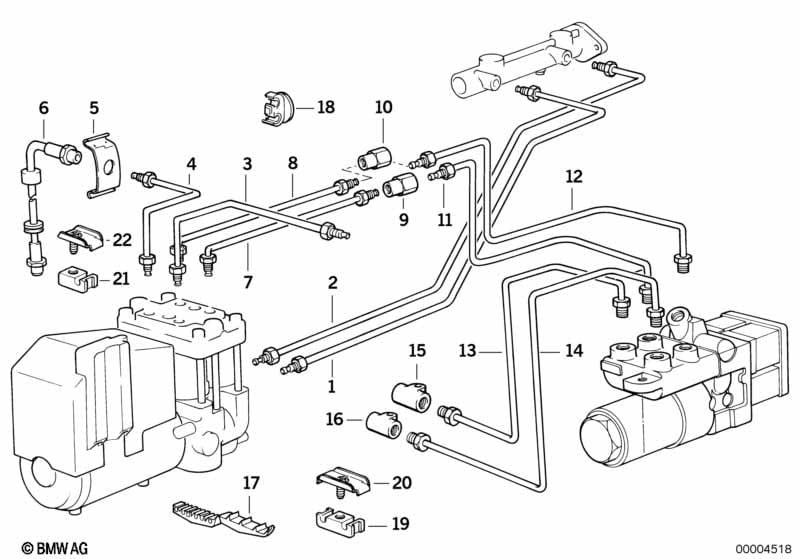

This Brake pipe front ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10-940MM | 1 | 34326755600 | $8.65 | Shop at ECS Tuning | ||||
| 02 | Pipe | M10/M10-963MM | 1 | 34326755601 | $10.03 | Shop at ECS Tuning | ||||
| 03 | Pipe | M10/M10-963MM | 1 | 34326755601 | $10.03 | Shop at ECS Tuning | ||||
| 04 | Pipe | M10/M10-2691MM | 1 | 34326755671 | $10.98 | Shop at ECS Tuning | ||||
| 05 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 06 | Brake hose | 2 | 34321159891 | $57.58 | Shop at ECS Tuning | |||||
| 07 | Pipe | M10/M12-719MM | 1 | 34326755498 | $5.13 | Shop at ECS Tuning | ||||
| 08 | Pipe | M10/M10 | 1 | 34326772563 | $53.48 | Shop at ECS Tuning | ||||
| 09 | Intermediate piece | M12X1 | 1 | 34326757285 | $4.08 | Shop at ECS Tuning | ||||
| 10 | Intermediate piece | M10X1 | 1 | 34326757282 | $4.08 | Shop at ECS Tuning | ||||
| 11 | Pipe | M12/M12-350MM | 1 | 34321160150 | $4.15 | ENDED | Shop at ECS Tuning | |||
| 12 | Pipe | M10/M10-330MM | 1 | 34326755562 | $7.60 | ENDED | Shop at ECS Tuning | |||
| 13 | Pipe | M12/M12-629MM | 1 | 34321160151 | $6.08 | ENDED | Shop at ECS Tuning | |||
| 14 | Pipe | M10/M10-560MM | 1 | 34326755582 | $7.60 | Shop at ECS Tuning | ||||
| 15 | Intermediate piece | M12X1 | 1 | 34326757285 | $4.08 | Shop at ECS Tuning | ||||
| 16 | Intermediate piece | M10X1 | 1 | 34326757282 | $4.08 | Shop at ECS Tuning | ||||
| 17 | Brake pipe bracket | 3 | 34321155786 | $1.43 | ENDED | Shop at ECS Tuning | ||||
| 18 | Brake pipe bracket | 3 | 34321159222 | $1.46 | Shop at ECS Tuning | |||||
| 19 | Clamp | 1 | 34321108212 | $2.70 | Shop at ECS Tuning | |||||
| 20 | Holder | 1 | 34321155062 | $0.60 | Shop at ECS Tuning | |||||
| 21 | Clamp | 2 | 34321108210 | $0.60 | Shop at ECS Tuning | |||||
| 22 | Bracket breather pipe | 2 | 16131179018 | $1.15 | Shop at ECS Tuning |
