Brake pipe rear disk brake for BMW 3 Series E36 318is (1998)

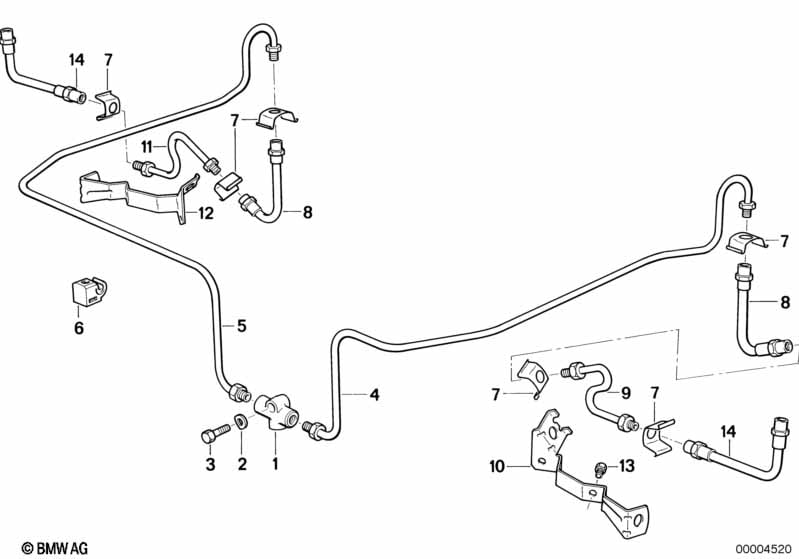

This Brake pipe rear disk brake technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO DISK BRAKE | |||||||||
| 01 | Distribution piece | M10X1 | 1 | 34341111435 | $8.08 | ENDED | Shop at ECS Tuning | |||
| 02 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Brake pipe bracket | 5 | 34301165382 | $0.90 | Shop at ECS Tuning | |||||
| 04 | Pipe | M10/M10-1080MM | 1 | 34326755607 | $10.03 | Shop at ECS Tuning | ||||
| 05 | Pipe | M10/M10-1705MM | 1 | 34326755636 | $10.03 | Shop at ECS Tuning | ||||
| 06 | Brake pipe bracket | 5 | 34326855500 | Shop at ECS Tuning | ||||||
| 07 | Clip | 6 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 08 | Brake hose rear | 2 | 34321159524 | $29.25 | Shop at ECS Tuning | |||||
| 09 | Pipe | M10/M10-205MM | 1 | 34326755550 | $5.83 | Shop at ECS Tuning | ||||
| 10 | Bracket brake pipe left | 1 | 34321159935 | $3.15 | Shop at ECS Tuning | |||||
| 11 | Pipe | M10/M10-205MM | 1 | 34326755550 | $5.83 | Shop at ECS Tuning | ||||
| 12 | Bracket brake pipe right | 1 | 34321159936 | $3.15 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Brake hose rear | L=200MM | 2 | 34321159881 | $30.11 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
