Power brake unit depression for BMW 3 Series E36 318i (1994)

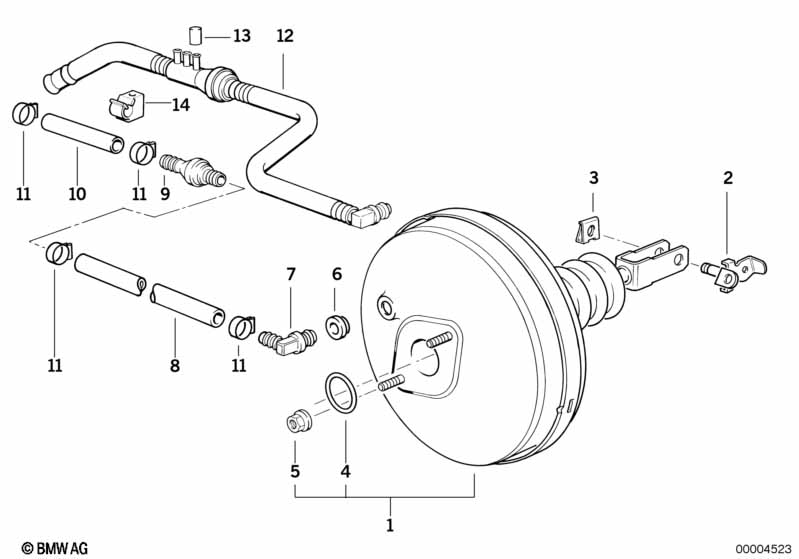

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Lucas Girling | |||||||||
| 01 | Power brake | 1 | 34331160623 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Power brake | 1 | 34331160621 | $326.99 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO INCREASE PAYLOAD | ||||||||||
| 02 | Pin | 1 | 34331158496 | $4.95 | Shop at ECS Tuning | |||||
| 03 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Brake master cylinder o-ring | 1 | 34311159007 | $3.15 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M8 | 2 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 1 | 34331158929 | $3.15 | Shop at ECS Tuning | |||||
| 07 | T-Connector | 1 | 34331158930 | $4.53 | Shop at ECS Tuning | |||||
| 08 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 09 | Check valve support | 1 | 34301161607 | $18.63 | Shop at ECS Tuning | |||||
| 10 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 11 | Hose clamp | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
