Power brake unit depression for BMW 3 Series E36 318i (1998)

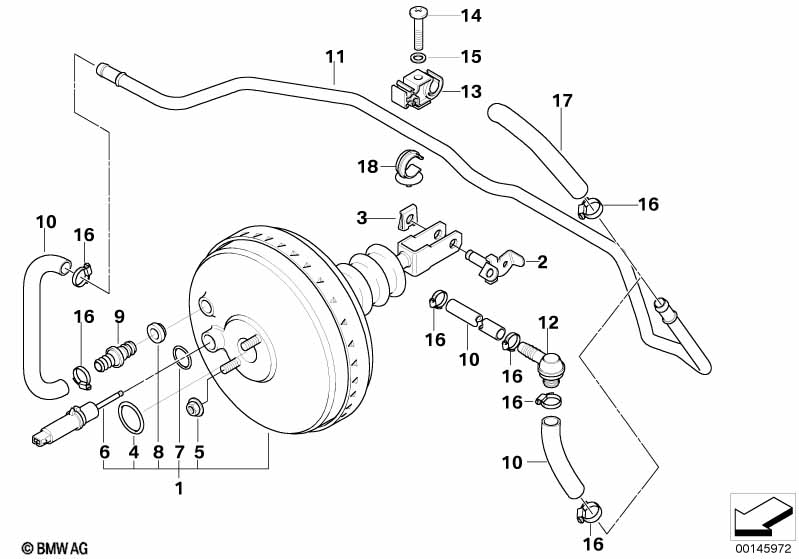

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ATE ONLY APPLIES TO ABS |
|||||||||
| 01 | Power brake | 1 | 09/1994 | 34331162963 | $505.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 4 | 09/1994 | 07119905374 | Shop at ECS Tuning | ||||
| For vehicles with ASC+T |
=Yes |
|||||||||
| 01 | Power brake | 1 | 09/1996 | 34331162963 | $505.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 4 | 09/1996 | 07119905374 | Shop at ECS Tuning | ||||
| 02 | Pin | 1 | 34331158496 | $4.95 | Shop at ECS Tuning | |||||
| 03 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Brake master cylinder o-ring | 1 | 34311160617 | $4.32 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Gasket | 1 | 34336893085 | Shop at ECS Tuning | ||||||
| 09 | T-Connector | 1 | 34331113652 | $2.50 | Shop at ECS Tuning | |||||
| 10 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 11 | Vacuum pipe | 1 | 10/1995 | 34301164058 | Shop at ECS Tuning | |||||
| 12 | non-return valve | 1 | 34331151534 | Shop at ECS Tuning | ||||||
| 12 | non-return valve | 1 | 34331156579 | $4.11 | Shop at ECS Tuning | |||||
| 13 | Brake pipe bracket | 2 | 34301166122 | Shop at ECS Tuning | ||||||
| 14 | Self tapping screw | M4X13 | 2 | 34321161389 | $0.08 | Shop at ECS Tuning | ||||
| 15 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 16 | Hose clamp | L18-24 | 6 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
