Handbrake lever for BMW 3 Series E36 M3 (1995)
This Handbrake lever technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| UPHOLSTERY LEATHER WALKNAPPA | ||||||||||
| 02 | Leather handbrake lever, walk-nappa | SCHWARZ | 1 | 34412227557 | $76.01 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim/SA773 |
=Yes |
|||||||||
| 02 | Wooden handbrake lever, nussbaum | 1 | 34412260960 | $238.31 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | Plastic handbrake handle | 1 | 34411116435 | $5.58 | Shop at ECS Tuning | |||||
| 04 | Base | 1 | 34411158013 | $0.57 | Shop at ECS Tuning | |||||
| 05 | Compression spring | 1 | 34411155210 | $0.28 | Shop at ECS Tuning | |||||
| 06 | Push-button | 1 | 34411152393 | $2.22 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X14-8.8-ZNS3 | 3 | 07119902922 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Walk-nappa handbrake lever cover | SCHWARZ | 1 | 34412227560 | $58.66 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DISK BRAKE | ||||||||||
| 09 | Bowden cable | 2 | 34411160134 | $40.64 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M6 | 2 | 34411151209 | $4.63 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M6 | 2 | 34411151208 | $0.15 | Shop at ECS Tuning | ||||
| 15 | Rubber grommet | D=22MM | 2 | 34411160117 | $1.03 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Handbrake lever?

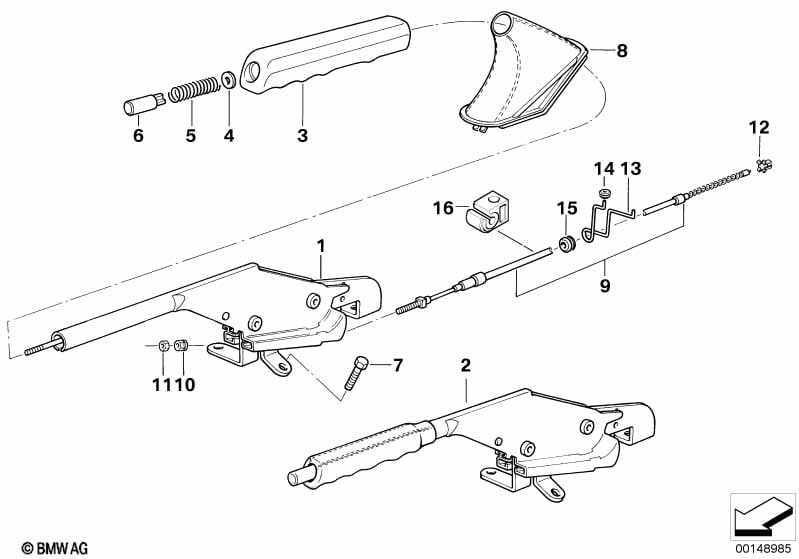

- This technical diagram illustrates the Handbrake lever within the Brakes group for the 3 Series E36 M3 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Leather handbrake lever, walk-nappa (Part #34412227557).
