Brake pipe rear ABS for BMW 5 Series E34 525td (1995)

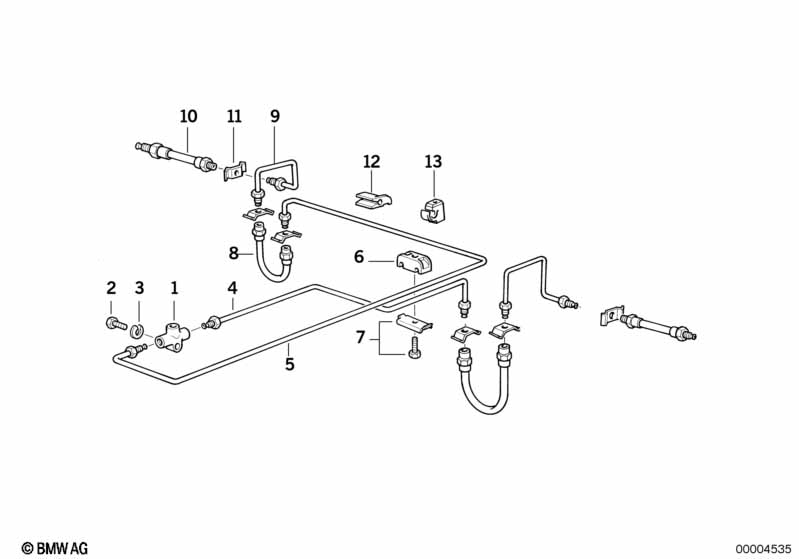

This Brake pipe rear ABS technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Distribution piece | M10X1 | 1 | 09/1991 | 34341111435 | $8.08 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex bolt | M6X22-8.8-ZNS3 | 1 | 09/1991 | 07119904505 | $0.38 | Shop at ECS Tuning | |||
| 03 | Spring washer Black | B6-ZN | 1 | 09/1991 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 03 | Washer | 5.3-140 HV-ZNS | 1 | 09/1991 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 04 | Pipe | M10/M10-260MM | 1 | 09/1991 | 34326755555 | $5.83 | Shop at ECS Tuning | |||
| 05 | Pipe | M10/M10 | 1 | 09/1991 | 34306779187 | $38.58 | Shop at ECS Tuning | |||
| 06 | Clamp | X | 09/1991 | 34321156195 | $0.32 | Shop at ECS Tuning | ||||
| 07 | Holder | X | 09/1991 | 16121155060 | $1.08 | Shop at ECS Tuning | ||||
| 08 | Brake hose rear | L=222MM | 2 | 09/1991 | 34321159878 | $38.29 | Shop at ECS Tuning | |||
| 09 | Pipe | M10/M10-470MM | 2 | 09/1991 | 34326755576 | $7.60 | Shop at ECS Tuning | |||
| 10 | Brake hose rear | L=200MM | 2 | 09/1991 | 34321159881 | $30.11 | Shop at ECS Tuning | |||
| 11 | Clip | 4 | 09/1991 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 12 | Clamp | 2 | 09/1991 | 34321238089 | $0.78 | ENDED | Shop at ECS Tuning | |||
| 13 | Brake pipe bracket | 3 | 09/1991 | 34326855500 | Shop at ECS Tuning |
