Power brake unit depression for BMW 5 Series E34 525i (1995)

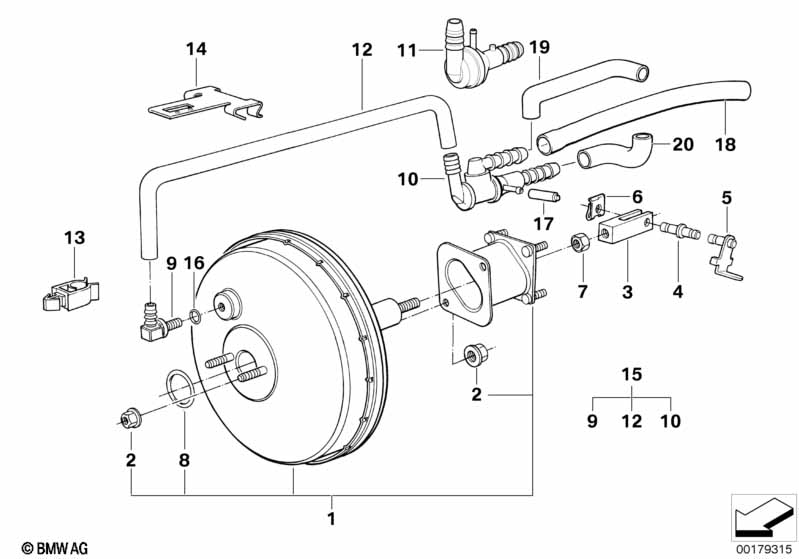

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Lucas Girling | |||||||||
| 01 | Power brake | GIRLING | 1 | 34331160624 | $711.10 | Shop at ECS Tuning | ||||
| 02 | Self-locking hex nut | M8 | 6 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Forkhead | L=50MM | 1 | 34331156826 | $3.50 | Shop at ECS Tuning | ||||
| 04 | Pin | 1 | 09/1989 | 34331161802 | $4.55 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 1 | 34331120538 | $0.60 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M10 | 1 | 07119922851 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 08 | Brake master cylinder o-ring | 1 | 34311159007 | $3.15 | Shop at ECS Tuning | |||||
| 09 | T-Connector | 1 | 34331158930 | $4.53 | Shop at ECS Tuning | |||||
| 09 | Connector straight | 1 | 34331158931 | $3.92 | Shop at ECS Tuning | |||||
| 11 | non-return valve | 1 | 34331158106 | $74.05 | Shop at ECS Tuning | |||||
| 12 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 16 | Gasket ring | 1 | 34331158929 | $3.15 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Power brake unit depression?
- This technical diagram illustrates the Power brake unit depression within the Brakes group for the 5 Series E34 525i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34331160624).
- Which models use the hardware listed in this Power brake unit depression?
- The hardware and components featured in the Power brake unit depression are specific to the 5 Series E34 525i produced during 1995. These technical specifications ensure that parts like the Power brake (34331160624) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power brake unit depression assembly?
- Each item in the Power brake unit depression corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34331160624 for the Brakes section.
