Power brake unit depression for BMW 5 Series E34 535i (1992)

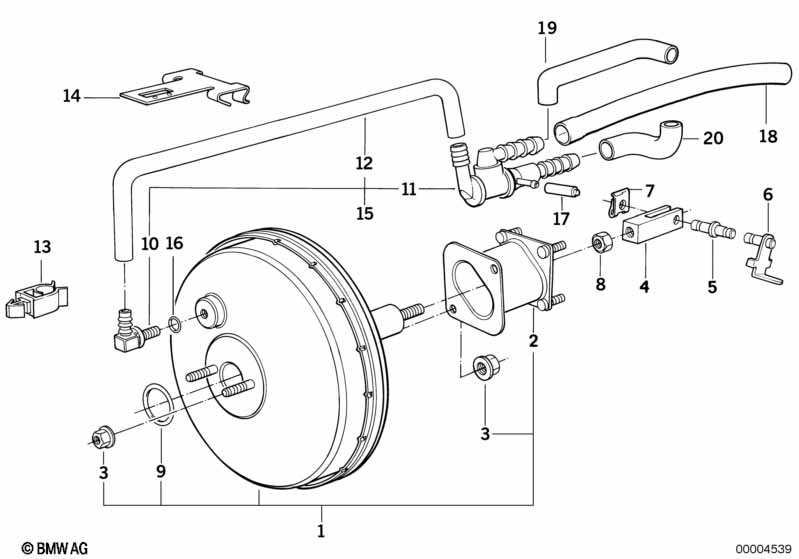

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For further information see main group 11 Vacuum control - engine |
|||||||||
| 01 | Power brake | ATE | 1 | 34331160629 | $1054.80 | ENDED | Shop at ECS Tuning | |||
| 03 | Self-locking hex nut | M8 | 4 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Forkhead | L=50MM | 1 | 34331156826 | $3.50 | Shop at ECS Tuning | ||||
| 05 | Pin | 1 | 09/1989 | 34331161802 | $4.55 | ENDED | Shop at ECS Tuning | |||
| 07 | Clamp | 1 | 34331120538 | $0.60 | Shop at ECS Tuning | |||||
| 08 | Hex nut | M10 | 1 | 07119922851 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 09 | Gasket | 1 | 34336893085 | Shop at ECS Tuning | ||||||
| 10 | T-Connector | 1 | 34331113652 | $2.50 | Shop at ECS Tuning | |||||
| 11 | non-return valve | 1 | 34331158106 | $74.05 | Shop at ECS Tuning | |||||
| 12 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 13 | Cable holder | D=10MM | 1 | 61131269273 | $1.97 | Shop at ECS Tuning | ||||
| 16 | Gasket | 1 | 34336893085 | Shop at ECS Tuning | ||||||
