Front brake pad wear sensor for BMW 3 Series E30 M3 (1990)

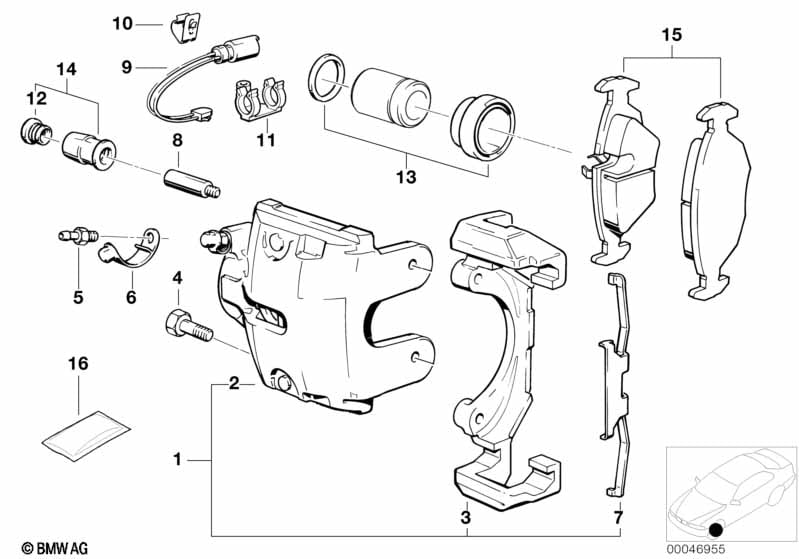

This Front brake pad wear sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper with out brake pads left | 1 | 34112225403 | $574.74 | ENDED | Shop at ECS Tuning | ||||
| 01 | Caliper with out brake pads right | 1 | 34112225404 | $574.74 | ENDED | Shop at ECS Tuning | ||||
| 01 | Set AT-caliper asbestos-free left/right | 1 | 34119061652 | ENDED | Shop at ECS Tuning | |||||
| 02 | Caliper housing left | 1 | 34112226871 | $531.14 | ENDED | Shop at ECS Tuning | ||||
| 02 | Caliper housing right | 1 | 34112226872 | $531.14 | ENDED | Shop at ECS Tuning | ||||
| 03 | Calliper carrier | 1 | 34111160371 | $423.08 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning | ||||
| 05 | Ventilation valve | SW7 | 2 | 34111153197 | $7.72 | Shop at ECS Tuning | ||||
| 06 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 07 | Clip | FN/28/302 | 2 | 34112226203 | $12.04 | Shop at ECS Tuning | ||||
| 08 | Guiding bolt | 4 | 34111157041 | $20.02 | Shop at ECS Tuning | |||||
| 09 | Brake pad wear sensor | 1 | 34351179819 | $12.04 | Shop at ECS Tuning | |||||
| 10 | Holder | 1 | 34351153966 | $0.88 | Shop at ECS Tuning | |||||
| 12 | Protective plug | 4 | 34111154979 | $1.80 | Shop at ECS Tuning | |||||
| 13 | Repair set brake caliper | 2 | 34111153202 | $25.42 | Shop at ECS Tuning | |||||
| 14 | Repair kit guide bush | 2 | 34216869617 | Shop at ECS Tuning | ||||||
| 15 | Repair kit, brake pads asbestos-free | JURID 595 | 1 | 34111161717 | $173.23 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Brake pad paste | 3G | 1 | 83192158851 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 15 | Repair kit, brake pads asbestos-free | JURID 595 | 1 | 34111161717 | $173.23 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Brake pad paste | 3G | 1 | 83192158851 | Shop at ECS Tuning | |||||
| 16 | Brake pad paste | 3G | 1 | 83192158851 | Shop at ECS Tuning | |||||
