Brake master cylinder/expansion tank for BMW 5 Series E34 540i (1995)

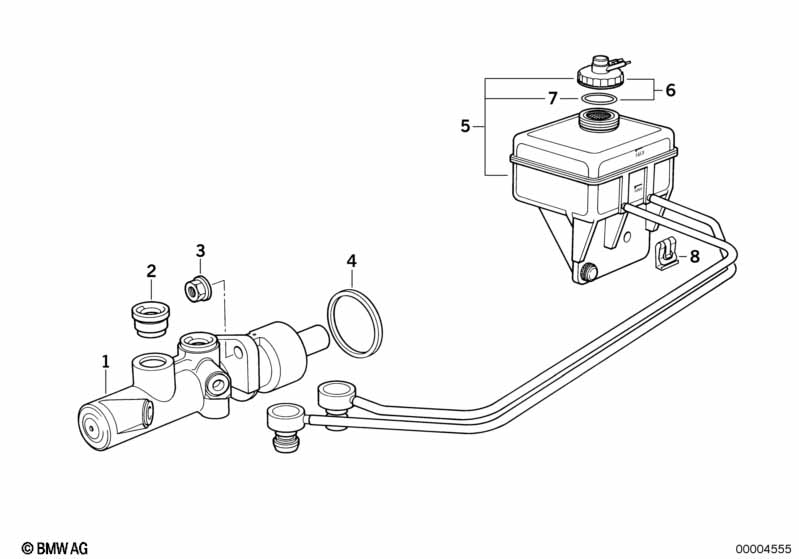

This Brake master cylinder/expansion tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Lucas Girling | |||||||||
| 01 | Brake master cylinder | 1 | 09/1993 | 34311162915 | $589.49 | Shop at ECS Tuning | ||||
| 02 | Plug | 2 | 34311163464 | $6.95 | Shop at ECS Tuning | |||||
| 03 | Self-locking collar nut | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 04 | Brake master cylinder o-ring | 1 | 34311159007 | $3.15 | Shop at ECS Tuning | |||||
| 05 | Expansion tank | GIRLING | 1 | 34321160576 | $102.96 | ENDED | Shop at ECS Tuning | |||
| 06 | Cap with warning switch | 1 | 34321162810 | $30.33 | Shop at ECS Tuning | |||||
| 07 | Gasket | 1 | 34321157396 | $4.52 | Shop at ECS Tuning | |||||
| 08 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
