Brake pipe front ABS for BMW 7 Series E32 730iL (1994)

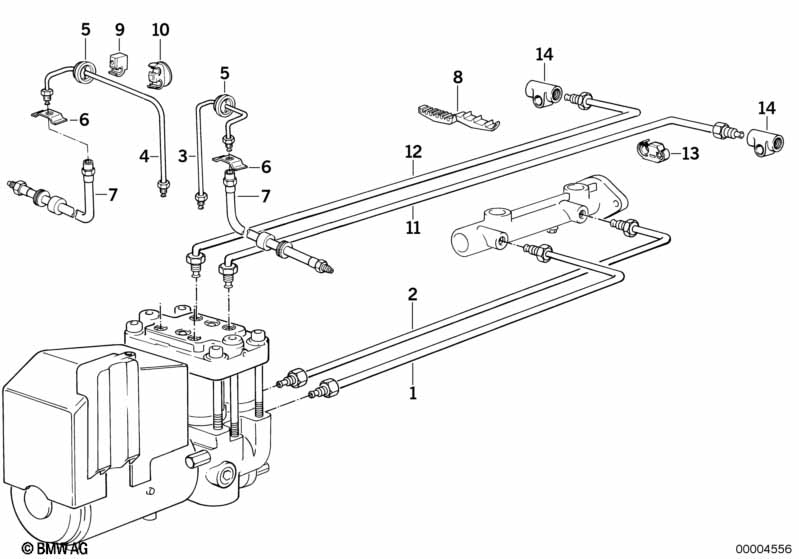

This Brake pipe front ABS technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10-310MM | 1 | 34326755560 | $7.60 | Shop at ECS Tuning | ||||
| 02 | Pipe | M10/M10-340MM | 1 | 34326755563 | $7.60 | Shop at ECS Tuning | ||||
| 03 | Pipe | M10/M10-1012MM | 1 | 34326755604 | $8.65 | Shop at ECS Tuning | ||||
| 04 | Pipe | M10/M10-2657MM | 1 | 34326755670 | $11.27 | ENDED | Shop at ECS Tuning | |||
| 05 | Rubber grommet | D=40MM | 2 | 34321154322 | $1.02 | Shop at ECS Tuning | ||||
| 06 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 07 | Brake hose | 2 | 34321159891 | $57.58 | Shop at ECS Tuning | |||||
| 08 | Brake pipe bracket | 3 | 34321155786 | $1.43 | ENDED | Shop at ECS Tuning | ||||
| 09 | Brake pipe bracket | 1 | 34326855500 | Shop at ECS Tuning | ||||||
| 10 | Brake pipe bracket | 3 | 34321160027 | $0.80 | Shop at ECS Tuning | |||||
| 11 | Pipe | M10/M10-829MM | 1 | 34326755594 | $8.65 | Shop at ECS Tuning | ||||
| 12 | Pipe | M10/M10-940MM | 1 | 34326755600 | $8.65 | Shop at ECS Tuning | ||||
| 14 | Intermediate piece | M10X1 | 2 | 34321160028 | $7.23 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
