Brake pipe rear ABS/ASC+T for BMW 5 Series E34 530i (1990)

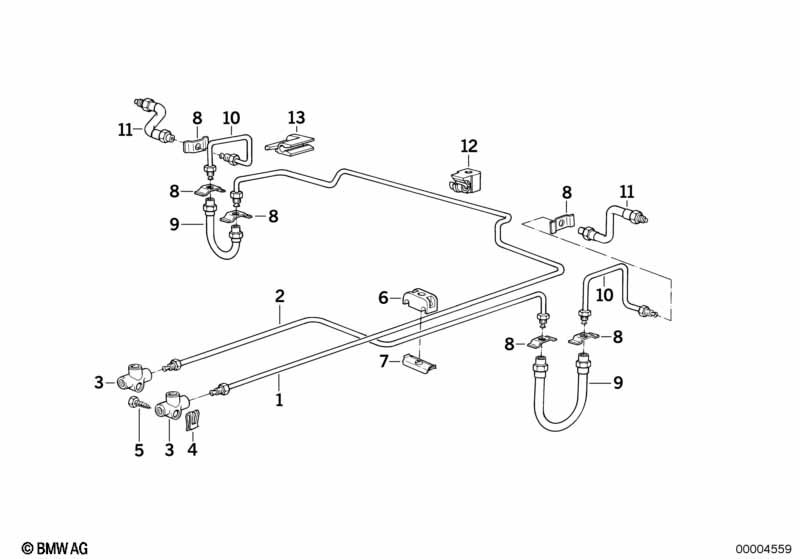

This Brake pipe rear ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10-4300MM | 1 | 34326755712 | $15.38 | Shop at ECS Tuning | ||||
| 02 | Pipe | M10/M10-3120MM | 1 | 34326755686 | $17.08 | Shop at ECS Tuning | ||||
| 03 | Intermediate piece | M10X1 | 2 | 34321160028 | $7.23 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST6,3X32-C-Z1 | 2 | 07119916975 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Clamp | 9 | 34321156195 | $0.32 | Shop at ECS Tuning | |||||
| 07 | Holder | 9 | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 08 | Clip | 6 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 09 | Brake hose rear | L=222MM | 2 | 34321159878 | $38.29 | Shop at ECS Tuning | ||||
| 10 | Pipe | M10/M10-470MM | 2 | 34326755576 | $7.60 | Shop at ECS Tuning | ||||
| 11 | Brake hose rear | L=200MM | 2 | 34321159881 | $30.11 | Shop at ECS Tuning | ||||
| 12 | Brake pipe bracket | 3 | 34326855500 | Shop at ECS Tuning | ||||||
| 13 | Clamp | 2 | 34321238089 | $0.78 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 530i Brake pipe rear ABS/ASC+T?
- This technical diagram illustrates the Brake pipe rear ABS/ASC+T within the Brakes group for the 5 Series E34 530i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #34326755712).
- Which models use the hardware listed in this Brake pipe rear ABS/ASC+T?
- The hardware and components featured in the Brake pipe rear ABS/ASC+T are specific to the 5 Series E34 530i produced during 1990. These technical specifications ensure that parts like the Pipe (34326755712) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe rear ABS/ASC+T assembly?
- Each item in the Brake pipe rear ABS/ASC+T corresponds to the numbered list below the illustration. For the 5 Series E34 530i, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 34326755712 for the Brakes section.
