Hydro unit ASC+T for BMW 8 Series E31 850Ci (1994)

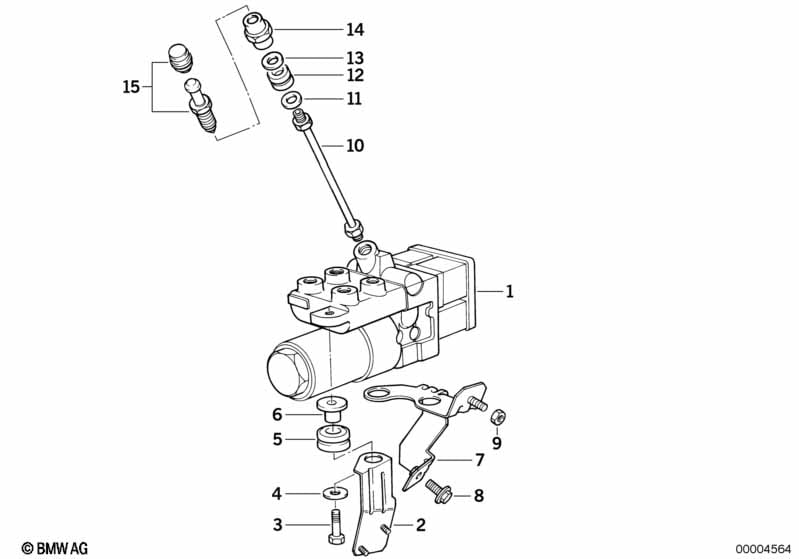

This Hydro unit ASC+T technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit ASC+T | 1 | 34511163086 | $1778.25 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket front | 1 | 34511159509 | $6.03 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X35 | 1 | 10/1996 | 07119901189 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 03 | Hex bolt | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Washer | 3 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 05 | Grommet | 3 | 13711275937 | $1.16 | Shop at ECS Tuning | |||||
| 06 | Sleeve | 3 | 34511159348 | $7.83 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket rear | 1 | 34511159510 | $7.37 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | 1 | 51341950474 | $0.59 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Pipe | M10/M10-283MM | 1 | 34326755328 | $5.83 | Shop at ECS Tuning | ||||
| 11 | Washer | 14X25X2-ZNS3 | 1 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 12 | Rubber grommet | 1 | 34306865954 | Shop at ECS Tuning | ||||||
| 13 | Washer | 10X25X1,5-ZNS3 | 1 | 37131114028 | $0.80 | Shop at ECS Tuning | ||||
| 14 | Intermediate piece | M10X1 | 1 | 34326757282 | $4.08 | Shop at ECS Tuning | ||||
| 15 | Ventilation valve | 1 | 37131160112 | $9.57 | Shop at ECS Tuning |
