Brake pipe front ABS for BMW 3 Series E36 M3 (1995)

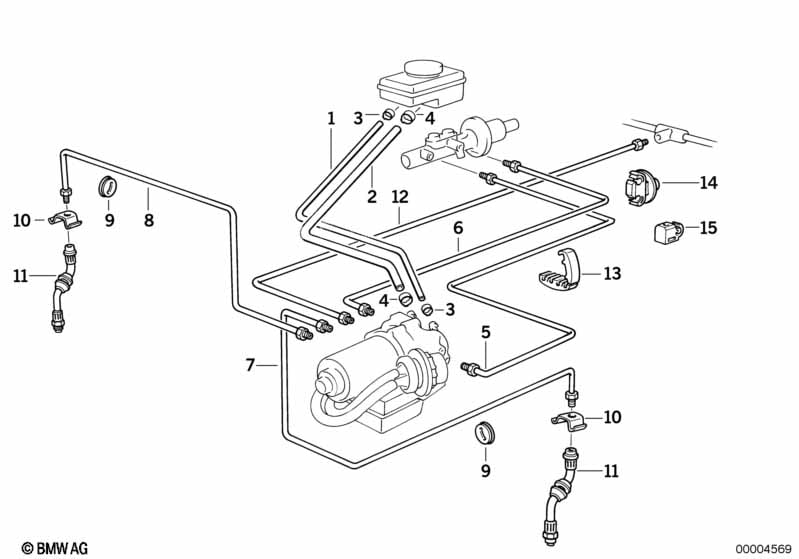

This Brake pipe front ABS technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose | 1 | 34322227297 | $18.96 | Shop at ECS Tuning | |||||
| 02 | Hose | 1 | 34322227296 | $18.96 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | 12,8-15,3 | 2 | 16121180240 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | 15,0-17,5 | 2 | 16121180241 | $1.76 | Shop at ECS Tuning | ||||
| 05 | Pipe | M10/M10-490MM | 1 | 34326755578 | $7.60 | Shop at ECS Tuning | ||||
| 06 | Pipe | M10/M10-470MM | 1 | 34326755576 | $7.60 | Shop at ECS Tuning | ||||
| 07 | Pipe | M10/M10-963MM | 1 | 34326755601 | $10.03 | Shop at ECS Tuning | ||||
| 08 | Pipe | M10/M10-2109MM | 1 | 34326755653 | $17.08 | Shop at ECS Tuning | ||||
| 09 | Rubber grommet | 2 | 34331161163 | $1.53 | Shop at ECS Tuning | |||||
| 10 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 11 | Brake hose front | 2 | 34322227381 | $54.71 | Shop at ECS Tuning | |||||
| 12 | Pipe | M10/M10-2039MM | 1 | 34326755649 | $10.03 | Shop at ECS Tuning | ||||
| 13 | Spacer, 4-way | 1 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 14 | Brake pipe bracket | 2 | 34321160027 | $0.80 | Shop at ECS Tuning | |||||
| 15 | Brake pipe bracket | 5 | 34326855500 | Shop at ECS Tuning |
