Brake pipe rear for BMW 8 Series E31 850Ci

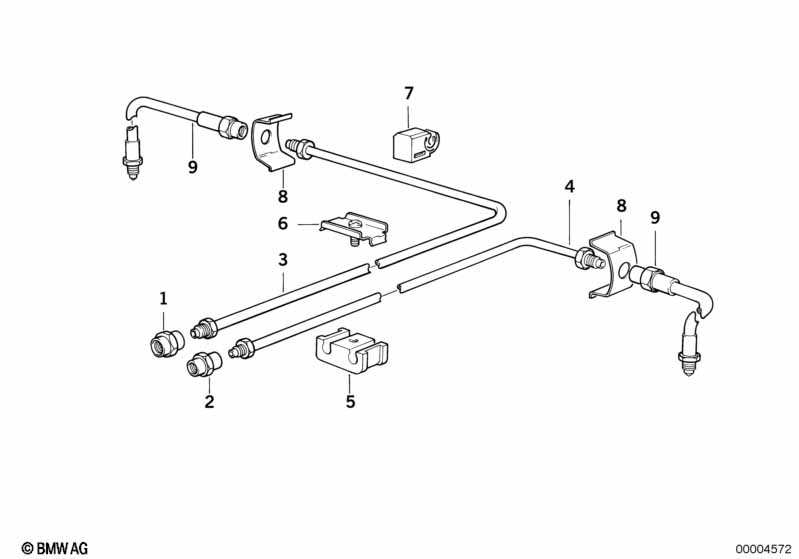

This Brake pipe rear technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intermediate piece | M12X1 | 1 | 34326757285 | $4.08 | Shop at ECS Tuning | ||||
| 02 | Intermediate piece | M10X1 | 1 | 34326757282 | $4.08 | Shop at ECS Tuning | ||||
| 03 | Pipe | M10/M12-4115MM | 1 | 34326755527 | $14.50 | ENDED | Shop at ECS Tuning | |||
| 04 | Pipe | M10/M10-2503MM | 1 | 34326755667 | $11.27 | Shop at ECS Tuning | ||||
| 05 | Clamp | 3 | 34321108212 | $2.70 | Shop at ECS Tuning | |||||
| 06 | Holder | 2 | 34321155062 | $0.60 | Shop at ECS Tuning | |||||
| 07 | Brake pipe bracket | 5 | 34326855500 | Shop at ECS Tuning | ||||||
| 08 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 09 | Brake hose rear | L=200MM | 2 | 34321159881 | $30.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Brake pipe rear?
- This technical diagram illustrates the Brake pipe rear within the Brakes group for the 8 Series E31 850Ci. It provides a detailed exploded view of the components, identifying key parts such as the Intermediate piece (Part #34326757285).
- Which models use the hardware listed in this Brake pipe rear?
- The hardware and components featured in the Brake pipe rear are specific to the 8 Series E31 850Ci. These technical specifications ensure that parts like the Intermediate piece (34326757285) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe rear assembly?
- Each item in the Brake pipe rear corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Intermediate piece by locating its position on the schematic, which then links to the official BMW part number 34326757285 for the Brakes section.
