Oil circuit of power brake unit for BMW 8 Series E31 850Ci (1992)

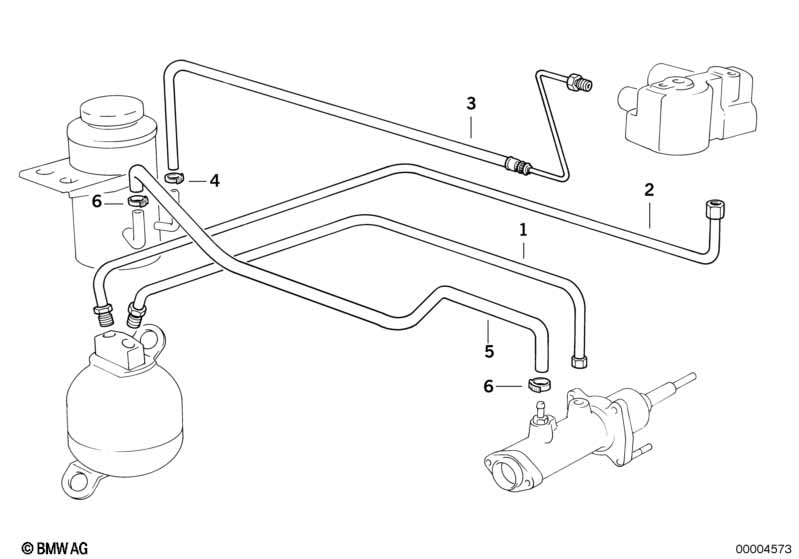

This Oil circuit of power brake unit technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | 1 | 34301159751 | $45.45 | Shop at ECS Tuning | |||||
| 02 | Pipe | 1 | 34331159750 | $45.45 | Shop at ECS Tuning | |||||
| 03 | Return line with pressure hose | 1 | 34321159286 | $15.03 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | D=10,8-13,3 | 1 | 32411156956 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Return pipe | 1 | 34321159289 | $14.13 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 13,2-15,7 | 2 | 34321156893 | $0.58 | Shop at ECS Tuning |
