Hydraulic brake servo unit for BMW 8 Series E31 850Ci

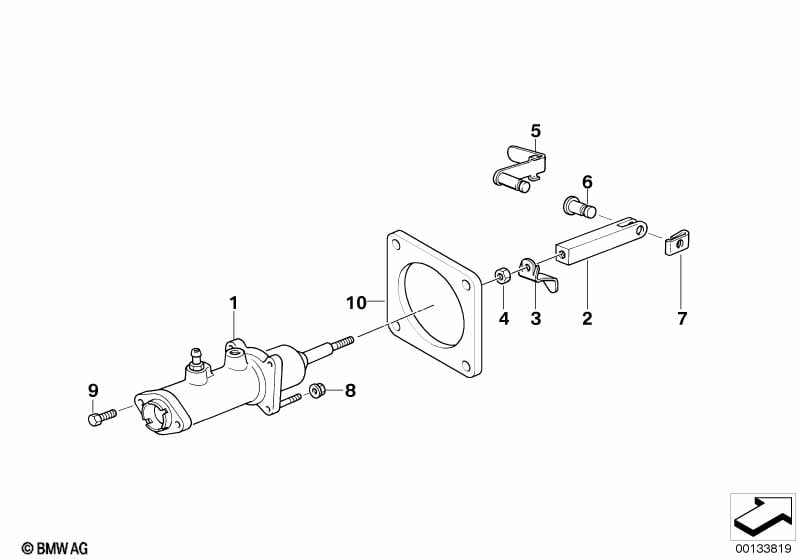

This Hydraulic brake servo unit technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | ATE | 1 | 34331161772 | $1277.02 | ENDED | Shop at ECS Tuning | |||
| 02 | Forkhead | 1 | 34331156146 | $3.85 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M10 | 1 | 07119922851 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 05 | Pin | 1 | 34331161802 | $4.55 | ENDED | Shop at ECS Tuning | ||||
| 07 | Clamp | 1 | 34331120538 | $0.60 | Shop at ECS Tuning | |||||
| 08 | Self-locking collar nut | M8-8-ZNS3 | 4 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M8X25 | 2 | 34331152651 | $12.34 | Shop at ECS Tuning | ||||
| 10 | Gasket | 1 | 35111150370 | $0.95 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Hydraulic brake servo unit?
- This technical diagram illustrates the Hydraulic brake servo unit within the Brakes group for the 8 Series E31 850Ci. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34331161772).
- Which models use the hardware listed in this Hydraulic brake servo unit?
- The hardware and components featured in the Hydraulic brake servo unit are specific to the 8 Series E31 850Ci. These technical specifications ensure that parts like the Power brake (34331161772) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydraulic brake servo unit assembly?
- Each item in the Hydraulic brake servo unit corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34331161772 for the Brakes section.
