Pressure regulator/pressure accumulator for BMW 8 Series E31 850Ci (1992)

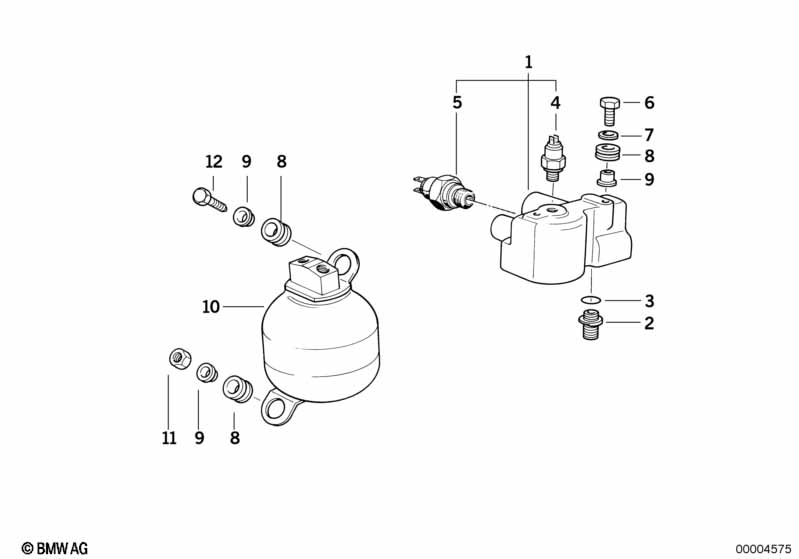

This Pressure regulator/pressure accumulator technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure regulator | 1 | 34331159752 | $795.70 | Shop at ECS Tuning | |||||
| 02 | Reducer | 1 | 34331156795 | $17.20 | Shop at ECS Tuning | |||||
| 03 | O-ring | 15,3X2,4 | 1 | 34331119868 | $1.85 | ENDED | Shop at ECS Tuning | |||
| 04 | Brake pressure differential switch | 1 | 34331150922 | $43.02 | ENDED | Shop at ECS Tuning | ||||
| 05 | Oil pressure switch | M10X1 ZYL. | 1 | 34351182270 | $40.63 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 07 | Washer | A8,4X25 | 2 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 4 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 09 | Sleeve | 4 | 34331152502 | $3.00 | Shop at ECS Tuning | |||||
| 10 | Pressure accumulator | 1 | 34331162056 | $392.87 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M8 | 1 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X28-ZN | 1 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
