Brake pipe rear ABS/ASC+T for BMW 5 Series E34 525ix (1995)

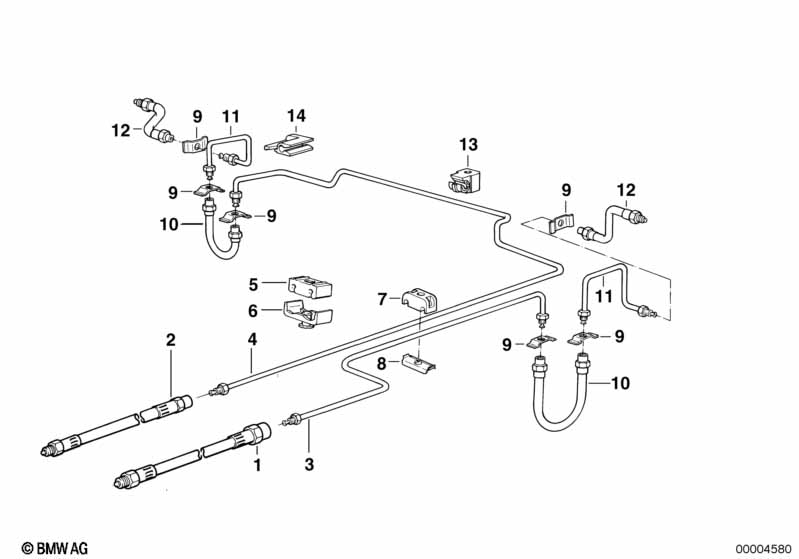

This Brake pipe rear ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake hose | M12X1 | 1 | 09/1993 | 34321162479 | $55.60 | ENDED | Shop at ECS Tuning | ||
| 02 | Brake hose | M10X1 | 1 | 09/1993 | 34321162477 | $55.60 | ENDED | Shop at ECS Tuning | ||
| 03 | Pipe | M10/M12-3154MM | 1 | 09/1993 | 34326755521 | $17.08 | Shop at ECS Tuning | |||
| 04 | Pipe | M10/M10-4341MM | 1 | 09/1993 | 34326755713 | $15.38 | ENDED | Shop at ECS Tuning | ||
| 05 | Rubber buffer | 1 | 09/1993 | 37131131811 | $2.25 | Shop at ECS Tuning | ||||
| 06 | Bow | 1 | 09/1993 | 37131131808 | $0.92 | Shop at ECS Tuning | ||||
| 07 | Bracket, brake pipe, double | 9 | 09/1993 | 34301162364 | $1.13 | ENDED | Shop at ECS Tuning | |||
| 08 | Clamp | 9 | 09/1993 | 34321162455 | $0.80 | Shop at ECS Tuning | ||||
| 09 | Clip | 6 | 09/1993 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 10 | Brake hose rear | L=222MM | 2 | 09/1993 | 34321159878 | $38.29 | Shop at ECS Tuning | |||
| 11 | Pipe | M10/M10-470MM | 2 | 09/1993 | 34326755576 | $7.60 | Shop at ECS Tuning | |||
| 12 | Brake hose rear | L=200MM | 2 | 09/1993 | 34321159881 | $30.11 | Shop at ECS Tuning | |||
| 13 | Brake pipe bracket | 3 | 09/1993 | 34326855500 | Shop at ECS Tuning | |||||
| 14 | Clamp | 2 | 09/1993 | 34321238089 | $0.78 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
