Front brake / brake disc for BMW 7 Series E38 725tds (2000)

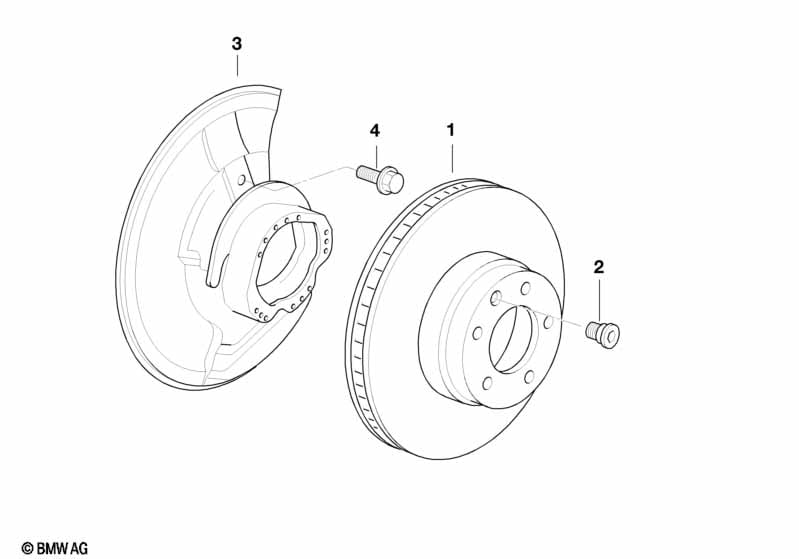

This Front brake / brake disc technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 725tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake disc, ventilated | 316X28 | 2 | 34116757753 | Shop at ECS Tuning | |||||
| 02 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 03 | Protection plate left | 1 | 34111161765 | $36.87 | Shop at ECS Tuning | |||||
| 03 | Protection plate right | 1 | 34111161766 | $36.87 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X8 | 6 | 34103451068 | $2.61 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 725tds Front brake / brake disc?
- This technical diagram illustrates the Front brake / brake disc within the Brakes group for the 7 Series E38 725tds produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Brake disc, ventilated (Part #34116757753).
- Which models use the hardware listed in this Front brake / brake disc?
- The hardware and components featured in the Front brake / brake disc are specific to the 7 Series E38 725tds produced during 2000. These technical specifications ensure that parts like the Brake disc, ventilated (34116757753) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front brake / brake disc assembly?
- Each item in the Front brake / brake disc corresponds to the numbered list below the illustration. For the 7 Series E38 725tds, you can identify the Brake disc, ventilated by locating its position on the schematic, which then links to the official BMW part number 34116757753 for the Brakes section.
