Brake pipe rear ABS/ASC+T for BMW 7 Series E38 730iL (1996)

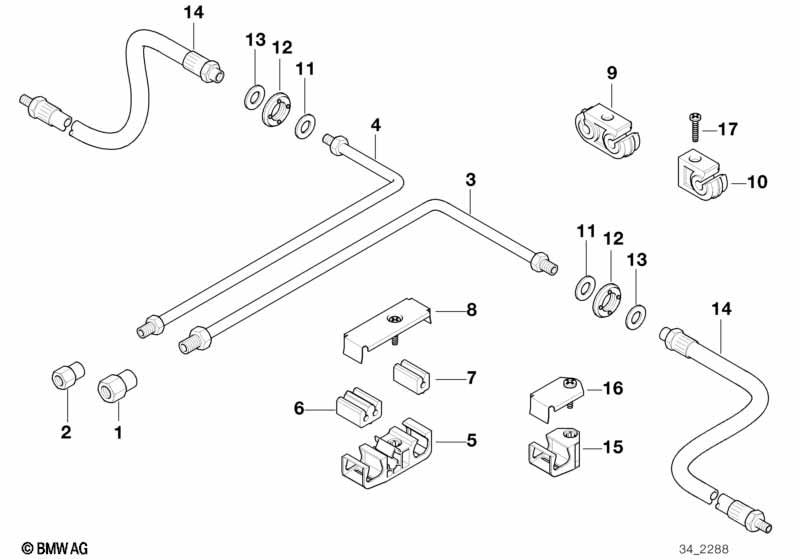

This Brake pipe rear ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intermediate piece | M12X1 | 1 | 09/1998 | 34326757285 | $4.08 | Shop at ECS Tuning | |||
| 02 | Intermediate piece | M10X1 | 1 | 09/1998 | 34326757282 | $4.08 | Shop at ECS Tuning | |||
| 03 | Pipe | M10/M12-3864MM | 1 | 09/1998 | 34326755526 | $30.00 | Shop at ECS Tuning | |||
| 04 | Pipe | M10/M10-3075MM | 1 | 09/1998 | 34326755684 | $17.08 | Shop at ECS Tuning | |||
| 05 | Tubing support | 4-FACH | 4 | 09/1998 | 16121181593 | $2.17 | Shop at ECS Tuning | |||
| 06 | Rubber buffer | 4 | 09/1998 | 37131091419 | $0.78 | Shop at ECS Tuning | ||||
| 07 | Rubber buffer | 4 | 09/1998 | 16121178832 | $2.08 | Shop at ECS Tuning | ||||
| 08 | Fuel pipe bracket | 4 | 09/1998 | 16121181594 | $2.77 | Shop at ECS Tuning | ||||
| 09 | Brake pipe bracket | 4 | 09/1998 | 34326880898 | Shop at ECS Tuning | |||||
| 10 | Brake pipe bracket | 2 | 09/1998 | 34326855500 | Shop at ECS Tuning | |||||
| 11 | Washer | 10X25X1,5-ZNS3 | 2 | 09/1998 | 37131114028 | $0.80 | Shop at ECS Tuning | |||
| 12 | Rubber grommet | 2 | 09/1998 | 34306865954 | Shop at ECS Tuning | |||||
| 13 | Washer | 14X25X2-ZNS3 | 2 | 09/1998 | 34301163613 | $0.83 | Shop at ECS Tuning | |||
| 14 | Brake hose rear | 2 | 09/1998 | 34301163080 | $35.20 | Shop at ECS Tuning |
