Power brake unit depression for BMW 7 Series E38 725tds (2000)

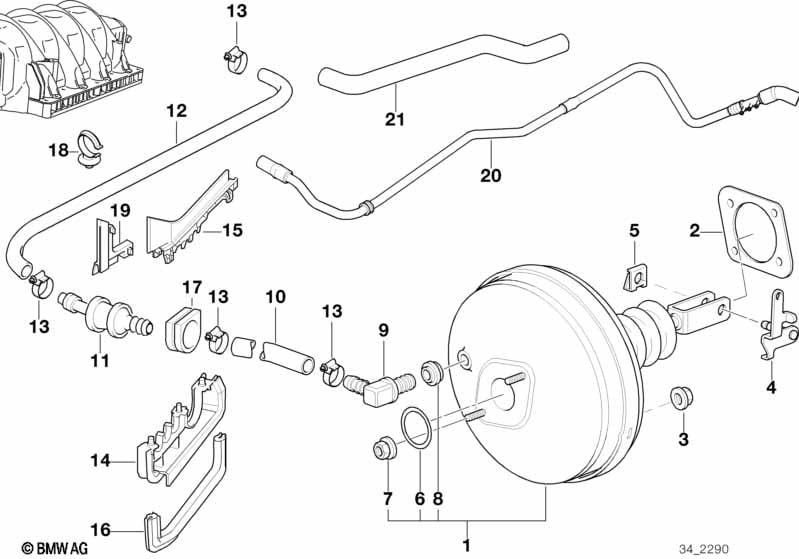

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 725tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | LSC-145 | 1 | 09/1997 | 34331165541 | $588.00 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Gasket | D=70MM | 1 | 09/1997 | 35111165132 | $3.10 | Shop at ECS Tuning | |||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 09/1997 | 07119905374 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 725tds Power brake unit depression?
- This technical diagram illustrates the Power brake unit depression within the Brakes group for the 7 Series E38 725tds produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34331165541).
- Which models use the hardware listed in this Power brake unit depression?
- The hardware and components featured in the Power brake unit depression are specific to the 7 Series E38 725tds produced during 2000. These technical specifications ensure that parts like the Power brake (34331165541) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power brake unit depression assembly?
- Each item in the Power brake unit depression corresponds to the numbered list below the illustration. For the 7 Series E38 725tds, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34331165541 for the Brakes section.
