Brake master cylinder/expansion tank for BMW 5 Series E39 523i (2000)

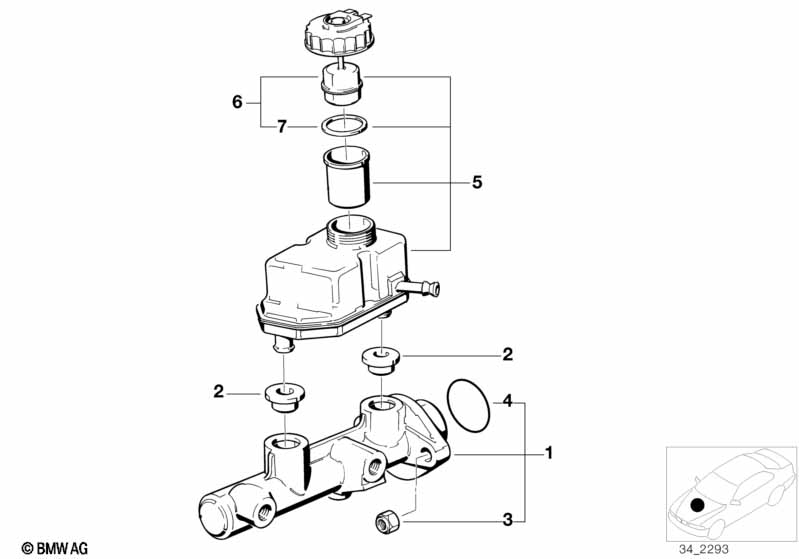

This Brake master cylinder/expansion tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake master cylinder | 1 | 09/1997 | 34311165543 | $481.15 | Shop at ECS Tuning | ||||
| For vehicles with Dynamic stability control |
S210A=Yes |
|||||||||
| 01 | Brake master cylinder DSC | 1 | 09/1999 | 34311165544 | $481.15 | Shop at ECS Tuning | ||||
| 02 | Plug | 2 | 34311163464 | $6.95 | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Brake master cylinder o-ring | 1 | 34311165092 | $3.15 | Shop at ECS Tuning | |||||
| 05 | EXPANSION TANK with warning switch | 1 | 34321165064 | $66.85 | Shop at ECS Tuning | |||||
| 06 | Cap with warning switch | 1 | 09/1997 | 34326756226 | $30.33 | Shop at ECS Tuning | ||||
| 07 | Gasket | 1 | 34321157396 | $4.52 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Brake master cylinder/expansion tank?
- This technical diagram illustrates the Brake master cylinder/expansion tank within the Brakes group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Brake master cylinder (Part #34311165543).
- Which models use the hardware listed in this Brake master cylinder/expansion tank?
- The hardware and components featured in the Brake master cylinder/expansion tank are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Brake master cylinder (34311165543) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake master cylinder/expansion tank assembly?
- Each item in the Brake master cylinder/expansion tank corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Brake master cylinder by locating its position on the schematic, which then links to the official BMW part number 34311165543 for the Brakes section.
