Brake pipe front ABS for BMW 5 Series E34 525tds (1996)

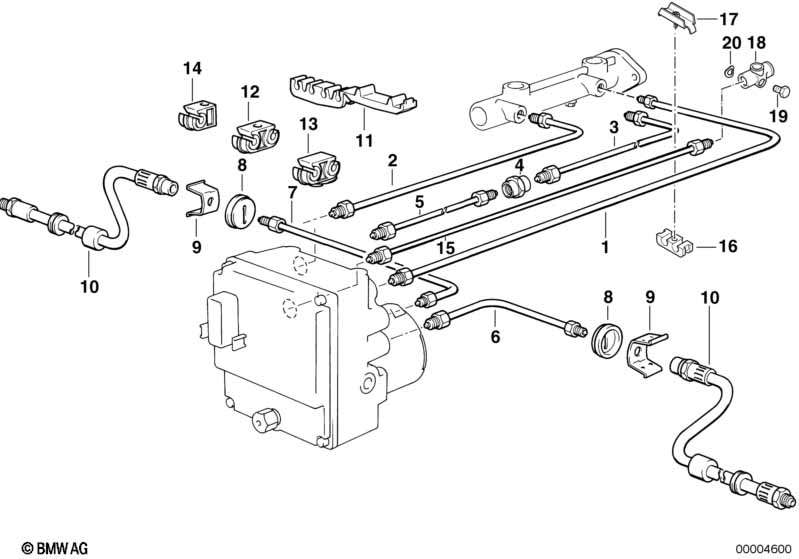

This Brake pipe front ABS technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe rubber covered | 1 | 05/1994 | 34321162467 | ENDED | Shop at ECS Tuning | ||||
| 01 | Pipe | M10/M10-900MM | 1 | 05/1994 | 34326755598 | $8.65 | Shop at ECS Tuning | |||
| 02 | Pipe rubber covered | M12/M12 | 1 | 05/1994 | 34321163475 | $13.06 | Shop at ECS Tuning | |||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 03 | Pipe | 1 | 05/1994 | 34321163428 | ENDED | Shop at ECS Tuning | ||||
| 04 | Intermediate piece | M12X1 | 1 | 05/1994 | 34326757285 | $4.08 | Shop at ECS Tuning | |||
| 06 | Pipe | M10/M12-408MM | 1 | 05/1994 | 34326755493 | $5.83 | Shop at ECS Tuning | |||
| 07 | Pipe | M10/M10-2039MM | 1 | 05/1994 | 34326755649 | $10.03 | Shop at ECS Tuning | |||
| 08 | Rubber grommet | D=40MM | 2 | 05/1994 | 34321154322 | $1.02 | Shop at ECS Tuning | |||
| 09 | Clip | 2 | 05/1994 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 10 | Brake hose | 2 | 05/1994 | 34321159891 | $57.58 | Shop at ECS Tuning | ||||
| 11 | Spacer, 4-way | 1 | 05/1994 | 34326777692 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Brake pipe bracket | 3 | 05/1994 | 34321160027 | $0.80 | Shop at ECS Tuning | ||||
| 14 | Brake pipe bracket | 1 | 05/1994 | 34326855500 | Shop at ECS Tuning | |||||
| 15 | Pipe | M10/M12-3400MM | 1 | 05/1994 | 34326755522 | $14.50 | Shop at ECS Tuning | |||
| 16 | Clamp | 9 | 05/1994 | 34321156195 | $0.32 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 16 | Clamp | 9 | 05/1994 | 34301162452 | $0.48 | Shop at ECS Tuning | ||||
| 17 | Holder | 9 | 05/1994 | 16121155060 | $1.08 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 17 | Holder | 9 | 05/1994 | 34321379024 | $0.64 | Shop at ECS Tuning | ||||
| 18 | Distribution piece | M10X1 | 1 | 05/1994 | 34341111435 | $8.08 | ENDED | Shop at ECS Tuning | ||
| 19 | Hex bolt | M6X22-8.8-ZNS3 | 1 | 05/1994 | 07119904505 | $0.38 | Shop at ECS Tuning | |||
| 20 | Wave washer | B6 | 1 | 05/1994 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | ||
