Brake pipe front ABS/ASC+T for BMW 3 Series E36 320i (1995)

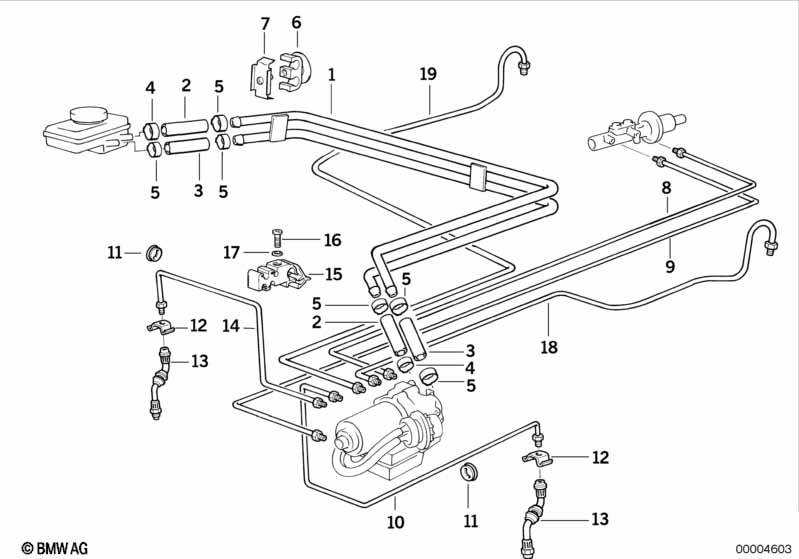

This Brake pipe front ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suction pipe | 1 | 10/1995 | 34301161819 | Shop at ECS Tuning | |||||
| 02 | Hose | 10X16 | X | 34321160265 | $16.53 | Shop at ECS Tuning | ||||
| 03 | Hose | 2 | 34321161000 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | 15,0-17,5 | 2 | 16121180241 | $1.76 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 12,8-15,3 | 6 | 16121180240 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Clamp | 2 | 34321160738 | Shop at ECS Tuning | ||||||
| 07 | Holder | 2 | 34321160929 | Shop at ECS Tuning | ||||||
| 08 | Pipe | M10/M10-1175MM | 1 | 09/1996 | 34326755612 | $8.65 | Shop at ECS Tuning | |||
| 09 | Pipe | M10/M10 | 1 | 09/1996 | 34306779187 | $38.58 | Shop at ECS Tuning | |||
| 10 | Pipe | M10/M10-1012MM | 1 | 09/1996 | 34326755604 | $8.65 | Shop at ECS Tuning | |||
| 11 | Rubber grommet | 2 | 34331161163 | $1.53 | Shop at ECS Tuning | |||||
| 12 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 13 | Brake hose front | 2 | 34321159717 | $39.55 | Shop at ECS Tuning | |||||
| 14 | Pipe | M10/M12-2109MM | 1 | 09/1996 | 34326755514 | $10.52 | Shop at ECS Tuning | |||
| 15 | Brake pipe bracket | 2 | 34301166122 | Shop at ECS Tuning | ||||||
| 16 | Self tapping screw | M4X13 | 2 | 34321161389 | $0.08 | Shop at ECS Tuning | ||||
| 17 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 18 | Pipe | M10/M10-3120MM | 1 | 09/1996 | 34326755686 | $17.08 | Shop at ECS Tuning | |||
| 19 | Pipe | M10/M12-3864MM | 1 | 09/1996 | 34326755526 | $30.00 | Shop at ECS Tuning |
