Brake servo unit ASC+T for BMW 3 Series E36 320i (1999)

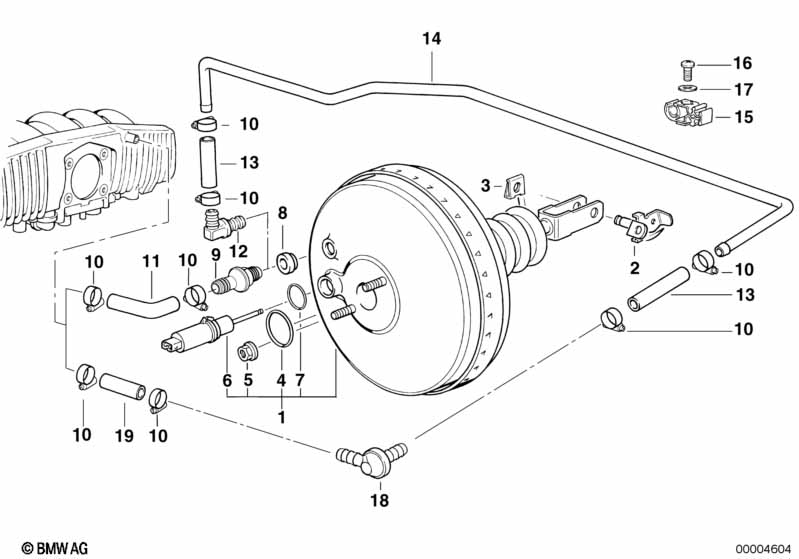

This Brake servo unit ASC+T technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | 1 | 09/1996 | 34331162963 | $505.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 4 | 09/1996 | 07119905374 | Shop at ECS Tuning | ||||
| 02 | Pin | 1 | 34331158496 | $4.95 | Shop at ECS Tuning | |||||
| 03 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Brake master cylinder o-ring | 1 | 34311160617 | $4.32 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Gasket | 1 | 09/1996 | 34336893085 | Shop at ECS Tuning | |||||
| 09 | non-return valve | 1 | 34331160183 | $7.02 | ENDED | Shop at ECS Tuning | ||||
| 09 | Check valve | 1 | 11667609924 | Shop at ECS Tuning | ||||||
| 10 | Hose clamp | 21,3MM | 2 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Hose elbow | 1 | 34331160537 | $16.27 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
