Power brake unit depression for BMW 5 Series E39 523i (2000)

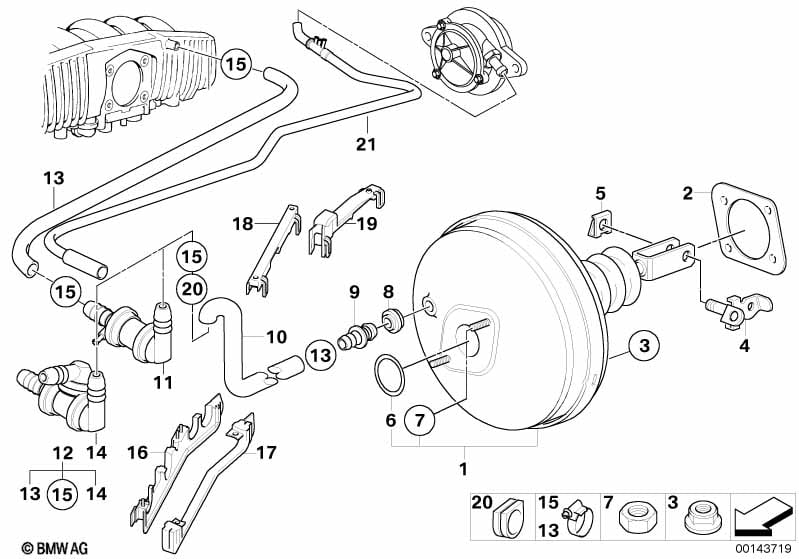

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | LSC-145 | 1 | 09/1997 | 34331165541 | $588.00 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Gasket | D=70MM | 1 | 09/1997 | 35111165132 | $3.10 | Shop at ECS Tuning | |||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 09/1997 | 07119905374 | Shop at ECS Tuning | ||||
| 02 | Gasket | D=70MM | 1 | 09/1997 | 35111165132 | $3.10 | Shop at ECS Tuning | |||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 05 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Brake master cylinder o-ring | 1 | 34311165092 | $3.15 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | 1 | 34331158929 | $3.15 | Shop at ECS Tuning | |||||
| 09 | Check valve support | 1 | 09/1998 | 12/2003 | 34331161300 | $9.38 | Shop at ECS Tuning | |||
| 09 | Check valve support | 1 | 09/1998 | 11667609925 | Shop at ECS Tuning | |||||
| 10 | Vacuum hose | 1 | 09/1998 | 34331165496 | $23.29 | Shop at ECS Tuning | ||||
| 16 | Sealing lower | 1 | 34301163239 | $8.45 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary heating |
=Yes |
|||||||||
| 16 | Sealing lower | 1 | 34301163241 | $7.60 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Latent heat accumulator |
=Yes |
|||||||||
| 16 | Sealing lower | 1 | 34301163242 | $7.60 | ENDED | Shop at ECS Tuning | ||||
| 17 | Gasket | 1 | 34301163449 | $2.57 | Shop at ECS Tuning | |||||
| 18 | Upper sealing | 1 | 34301163454 | $1.63 | Shop at ECS Tuning | |||||
| 19 | Upper sealing | 1 | 34301163593 | $2.08 | Shop at ECS Tuning | |||||
| 20 | Rubber grommet | 1 | 34301162170 | $2.15 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Power brake unit depression?
- This technical diagram illustrates the Power brake unit depression within the Brakes group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34331165541).
- Which models use the hardware listed in this Power brake unit depression?
- The hardware and components featured in the Power brake unit depression are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Power brake (34331165541) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power brake unit depression assembly?
- Each item in the Power brake unit depression corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34331165541 for the Brakes section.
