Brake pipe front ABS/ASC+T for BMW 3 Series E36 323i (1997)

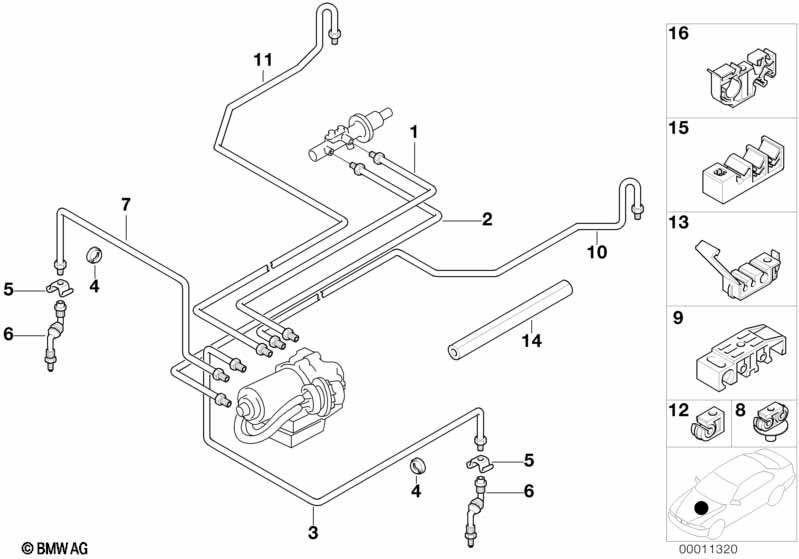

This Brake pipe front ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10-1200MM | 1 | 34326755613 | ENDED | Shop at ECS Tuning | ||||
| 03 | Pipe | M10/M12-1009MM | 1 | 34326755505 | $10.03 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 2 | 34331161163 | $1.53 | Shop at ECS Tuning | |||||
| 05 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 06 | Brake hose front | 2 | 34321159717 | $39.55 | Shop at ECS Tuning | |||||
| 07 | Pipe | M10/M10-2143MM | 1 | 34326755654 | $10.03 | Shop at ECS Tuning | ||||
| 09 | Fuel pipe bracket | 1 | 16121180420 | Shop at ECS Tuning | ||||||
| 10 | Pipe | M10/M12-3154MM | 1 | 34326755521 | $17.08 | Shop at ECS Tuning | ||||
| 11 | Pipe | M10/M10-3850MM | 1 | 34326755706 | $17.08 | Shop at ECS Tuning | ||||
| 12 | Brake pipe bracket | 5 | 34326855500 | Shop at ECS Tuning | ||||||
| 13 | Bracket for brake/fuel line, 3-section | 2 | 34306779773 | $1.22 | Shop at ECS Tuning | |||||
| 14 | Tube protection | 1 | 37131120023 | $0.92 | Shop at ECS Tuning | |||||
| 15 | Brake pipe bracket | 1 | 61138375491 | Shop at ECS Tuning | ||||||
| 16 | Brake pipe bracket | 2 | 34301166122 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
