Brake servo unit ABS for BMW 3 Series E36 316i (1998)

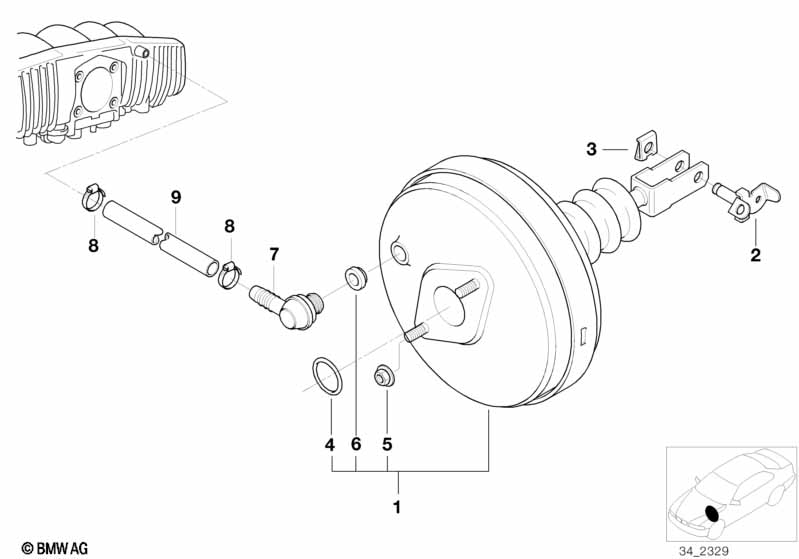

This Brake servo unit ABS technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | 1 | 34331162963 | $505.30 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | Pin | 1 | 34331158496 | $4.95 | Shop at ECS Tuning | |||||
| 03 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Brake master cylinder o-ring | 1 | 34311160617 | $4.32 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 06 | Gasket | 1 | 34336893085 | Shop at ECS Tuning | ||||||
| 07 | Check valve support | 1 | 05/1999 | 34331161300 | $9.38 | Shop at ECS Tuning | ||||
| 07 | Check valve support | 1 | 11667609925 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | 21,3MM | 2 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Hose | 12X19 | X | 34331108710 | $23.58 | Shop at ECS Tuning | ||||
