Power brake unit depression for BMW 3 Series E36 M3 (1999)

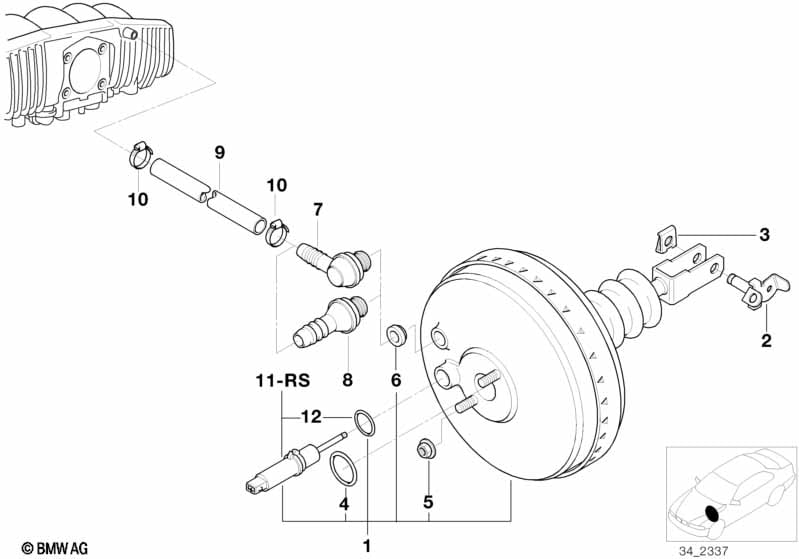

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | 1 | 34331162965 | $808.48 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pin | 1 | 34331158496 | $4.95 | Shop at ECS Tuning | |||||
| 03 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Brake master cylinder o-ring | 1 | 34311160617 | $4.32 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M8 | 2 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Gasket | 1 | 09/1996 | 34336893085 | Shop at ECS Tuning | |||||
| 08 | non-return valve | 1 | 34331160183 | $7.02 | ENDED | Shop at ECS Tuning | ||||
| 08 | Check valve | 1 | 11667609924 | Shop at ECS Tuning | ||||||
| 09 | Hose elbow | 1 | 34331160537 | $16.27 | Shop at ECS Tuning | |||||
| 10 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 11 | Repair kit way sensor | 1 | 34331182594 | $145.90 | Shop at ECS Tuning | |||||
| 12 | Displacement sensor o-ring | 1 | 34331181297 | $3.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Power brake unit depression?
- This technical diagram illustrates the Power brake unit depression within the Brakes group for the 3 Series E36 M3 produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34331162965).
- Which models use the hardware listed in this Power brake unit depression?
- The hardware and components featured in the Power brake unit depression are specific to the 3 Series E36 M3 produced during 1999. These technical specifications ensure that parts like the Power brake (34331162965) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power brake unit depression assembly?
- Each item in the Power brake unit depression corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34331162965 for the Brakes section.
