Rear brake / brake pad / wear sensor for BMW 3 Series E36 318ti (1995)

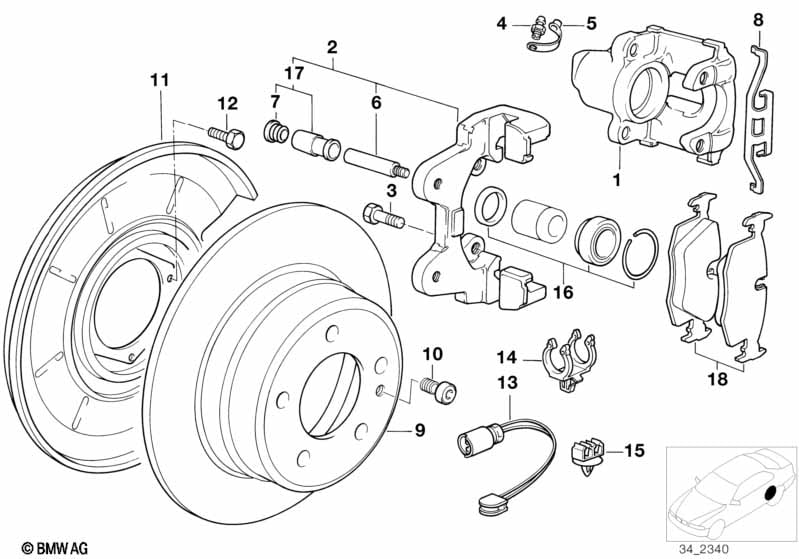

This Rear brake / brake pad / wear sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO DISK BRAKE | |||||||||
| 01 | Caliper housing left | 1 | 34211162437 | $350.83 | Shop at ECS Tuning | |||||
| 01 | Caliper housing right | 1 | 34211162438 | $350.83 | ENDED | Shop at ECS Tuning | ||||
| 02 | Calliper carrier | 2 | 34211162436 | $215.64 | ENDED | Shop at ECS Tuning | ||||
| 03 | Collar screw, micro-encapsulated | M10X26,5 | 4 | 34203414763 | $1.32 | Shop at ECS Tuning | ||||
| 04 | Ventilation valve | SW7 | 2 | 34111153197 | $7.72 | Shop at ECS Tuning | ||||
| 05 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 06 | Guiding bolt | 4 | 34111157041 | $20.02 | Shop at ECS Tuning | |||||
| 07 | Protective plug | 4 | 34111154979 | $1.80 | Shop at ECS Tuning | |||||
| 08 | Clip | 2 | 34211157046 | $9.92 | Shop at ECS Tuning | |||||
| 09 | Brake disk | 272X10 | 2 | 34216758553 | ENDED | Shop at ECS Tuning | ||||
| 11 | Protection plate left | 1 | 34211162061 | $26.17 | Shop at ECS Tuning | |||||
| 11 | Protection plate right | 1 | 34211162062 | $26.17 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M6X8 | 8 | 34103451068 | $2.61 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X22 | 8 | 34411121511 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Brake pad wear sensor | 1 | 34351182533 | $18.04 | Shop at ECS Tuning | |||||
| 15 | Brake pad wear sensor holder | 1 | 33181182535 | $0.65 | Shop at ECS Tuning | |||||
| 16 | Repair set brake caliper | 2 | 34211160336 | $39.47 | Shop at ECS Tuning | |||||
| 17 | Repair kit guide bush | 2 | 34216869617 | Shop at ECS Tuning | ||||||
| 18 | Repair kit, brake pads asbestos-free | 1 | 34216778168 | $88.38 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
