Rear brake / brake pad / wear sensor for BMW 7 Series E38 750iLS (2001)

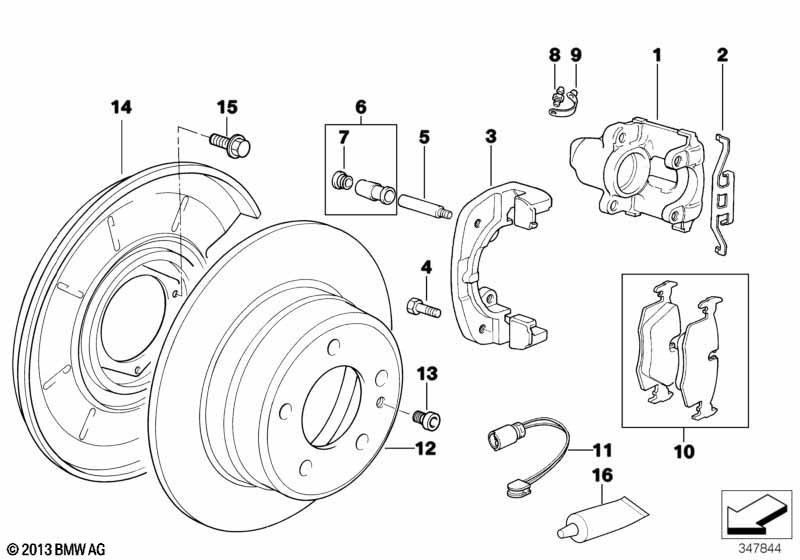

This Rear brake / brake pad / wear sensor technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper housing left | 1 | 34216750695 | $460.54 | Shop at ECS Tuning | |||||
| 01 | Caliper housing right | 1 | 34216750696 | $460.54 | Shop at ECS Tuning | |||||
| 02 | Clip | 2 | 34211159963 | $12.28 | Shop at ECS Tuning | |||||
| 04 | Collar screw, micro-encapsulated | M10X26,5 | 4 | 34203414763 | $1.32 | Shop at ECS Tuning | ||||
| 05 | Guiding bolt | 4 | 34111157041 | $20.02 | Shop at ECS Tuning | |||||
| 06 | Repair kit guide bush | 2 | 34216869617 | Shop at ECS Tuning | ||||||
| 07 | Protective plug | 4 | 34111154979 | $1.80 | Shop at ECS Tuning | |||||
| 08 | Ventilation valve | SW7 | 2 | 34111153197 | $7.72 | Shop at ECS Tuning | ||||
| 09 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 10 | Repair kit, brake pads asbestos-free | 1 | 34216761247 | $96.78 | Shop at ECS Tuning | |||||
| For vehicles with National version Great Britain |
L812A=Yes |
|||||||||
| 10 | Repair kit, brake pads asbestos-free | 1 | 34216761247 | $96.78 | Shop at ECS Tuning | |||||
| 11 | Brake pad wear sensor | 1 | 34351182065 | $23.35 | Shop at ECS Tuning | |||||
| 12 | Brake disc, ventilated | 328X20 | 2 | 34216767063 | Shop at ECS Tuning | |||||
| 13 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 14 | Protection plate left | 1 | 34211163033 | Shop at ECS Tuning | ||||||
| 14 | Protection plate right | 1 | 34211163034 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M6X8 | 4 | 34103451068 | $2.61 | Shop at ECS Tuning | ||||
| 16 | Brake pad paste | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
