Power brake unit depression for BMW 3 Series E30 318is (1991)

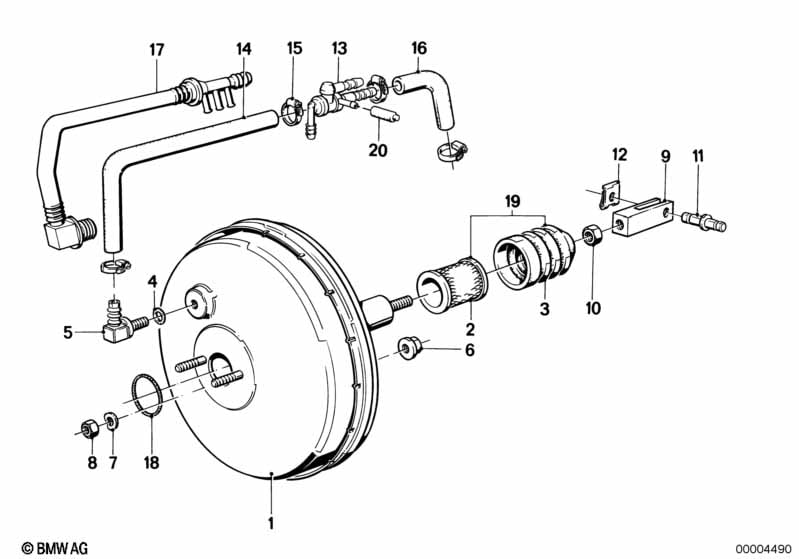

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | ATE | 1 | 34331157416 | $555.06 | ENDED | Shop at ECS Tuning | |||
| 02 | Air cleaner | 1 | 34331154948 | $2.61 | ENDED | Shop at ECS Tuning | ||||
| 03 | Protection cap | ATE | 1 | 34331153317 | $8.45 | Shop at ECS Tuning | ||||
| 04 | Gasket | 1 | 34336893085 | Shop at ECS Tuning | ||||||
| 05 | T-Connector | 1 | 34331113652 | $2.50 | Shop at ECS Tuning | |||||
| 06 | Self-locking collar nut | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 08 | Mounting parts set | ATE | 2 | 34331154250 | $6.39 | ENDED | Shop at ECS Tuning | |||
| 09 | Forkhead | L=44MM | 1 | 35211154097 | $2.77 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 11 | Pin | 1 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 12 | Clamp | 1 | 34331120538 | $0.60 | Shop at ECS Tuning | |||||
| 13 | non-return valve | 1 | 34331151534 | Shop at ECS Tuning | ||||||
| For vehicles with automatic heater control |
=Yes |
|||||||||
| 13 | non-return valve | 1 | 34331154389 | $6.61 | Shop at ECS Tuning | |||||
| 14 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 15 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 16 | Vacuum hose | 12X19 | 1 | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 18 | O-ring | ATE | 1 | 34314650345 | $3.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318is Power brake unit depression?
- This technical diagram illustrates the Power brake unit depression within the Brakes group for the 3 Series E30 318is produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34331157416).
- Which models use the hardware listed in this Power brake unit depression?
- The hardware and components featured in the Power brake unit depression are specific to the 3 Series E30 318is produced during 1991. These technical specifications ensure that parts like the Power brake (34331157416) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power brake unit depression assembly?
- Each item in the Power brake unit depression corresponds to the numbered list below the illustration. For the 3 Series E30 318is, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34331157416 for the Brakes section.
