Hydro unit ABS/ASC+T for BMW 5 Series E34 530i

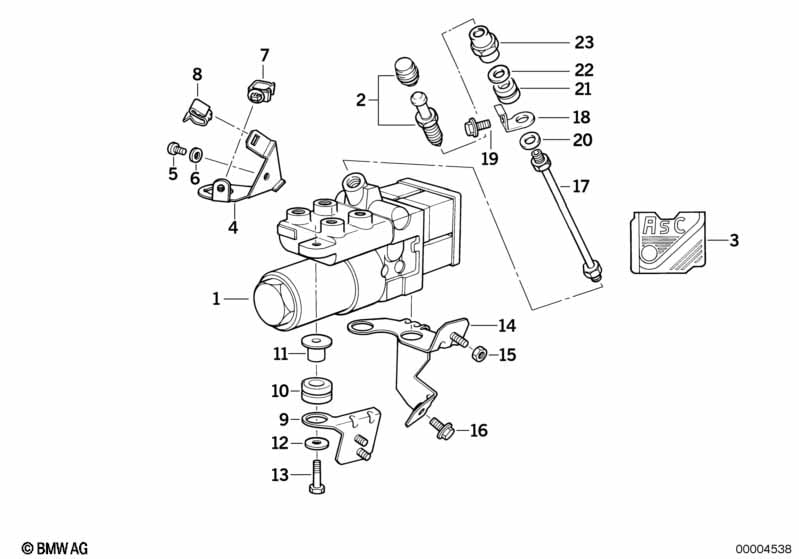

This Hydro unit ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit ASC+T | 1 | 09/1993 | 34511163086 | $1778.25 | ENDED | Shop at ECS Tuning | |||
| 01 | Hydro unit ASC+T | 1 | 09/1993 | 34511163086 | $1778.25 | ENDED | Shop at ECS Tuning | |||
| 02 | Ventilation valve | 1 | 09/1993 | 37131160112 | $9.57 | Shop at ECS Tuning | ||||
| 09 | Bracket front | 1 | 09/1993 | 34511140527 | ENDED | Shop at ECS Tuning | ||||
| 10 | Grommet | 3 | 09/1993 | 13711275937 | $1.16 | Shop at ECS Tuning | ||||
| 11 | Sleeve | 3 | 09/1993 | 34511159348 | $7.83 | ENDED | Shop at ECS Tuning | |||
| 12 | Washer | 3 | 09/1993 | 18214690192 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M6X35-8.8-ZNS3 | 1 | 09/1993 | 07119902998 | $0.38 | Shop at ECS Tuning | |||
| 13 | Hex bolt | M6X25 | 2 | 09/1993 | 07119913589 | $0.62 | Shop at ECS Tuning | |||
| 14 | Bracket rear | 1 | 09/1993 | 34511140528 | $5.47 | ENDED | Shop at ECS Tuning | |||
| 16 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 09/1993 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 18 | Bracket breather pipe | 1 | 04/1993 | 09/1993 | 34501162190 | $3.28 | ENDED | Shop at ECS Tuning | ||
| 19 | Hex bolt | M6X12 | 1 | 04/1993 | 09/1993 | 07119913013 | $1.22 | Shop at ECS Tuning | ||
| 20 | Washer | 10X25X1,5-ZNS3 | 1 | 04/1993 | 09/1993 | 37131114028 | $0.80 | Shop at ECS Tuning | ||
| 21 | Rubber grommet | 1 | 04/1993 | 09/1993 | 34306865954 | Shop at ECS Tuning | ||||
| 22 | Washer | 14X25X2-ZNS3 | 1 | 04/1993 | 09/1993 | 34301163613 | $0.83 | Shop at ECS Tuning | ||
| 23 | Intermediate piece | M10X1 | 1 | 04/1993 | 09/1993 | 34326757282 | $4.08 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 530i Hydro unit ABS/ASC+T?
- This technical diagram illustrates the Hydro unit ABS/ASC+T within the Brakes group for the 5 Series E34 530i. It provides a detailed exploded view of the components, identifying key parts such as the Hydro unit ASC+T (Part #34511163086).
- Which models use the hardware listed in this Hydro unit ABS/ASC+T?
- The hardware and components featured in the Hydro unit ABS/ASC+T are specific to the 5 Series E34 530i. These technical specifications ensure that parts like the Hydro unit ASC+T (34511163086) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro unit ABS/ASC+T assembly?
- Each item in the Hydro unit ABS/ASC+T corresponds to the numbered list below the illustration. For the 5 Series E34 530i, you can identify the Hydro unit ASC+T by locating its position on the schematic, which then links to the official BMW part number 34511163086 for the Brakes section.
