Brake pipe front ABS/ASC+T for BMW 3 Series E46 328i (2000)

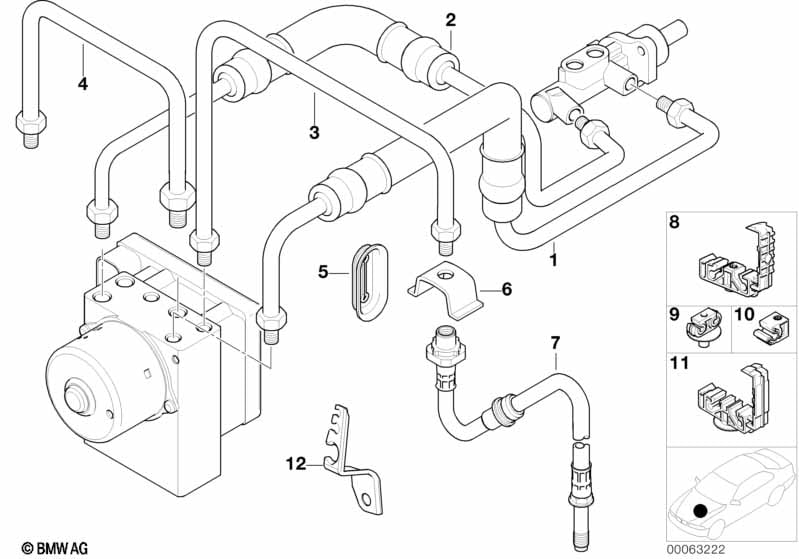

This Brake pipe front ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10-1310MM | 1 | 12/1999 | 09/2001 | 34326752166 | $10.03 | Shop at ECS Tuning | ||
| 02 | Pipe | M12/M12- | 1 | 10/1999 | 09/2001 | 34326754870 | Shop at ECS Tuning | |||
| 03 | Pipe | M10/M12-593MM | 1 | 10/1999 | 09/2001 | 34326754843 | $17.08 | Shop at ECS Tuning | ||
| 04 | Pipe | M10/M10-2252MM | 1 | 10/1999 | 09/2001 | 34326754845 | $17.08 | Shop at ECS Tuning | ||
| 05 | Rubber grommet | 2 | 09/2001 | 34331161163 | $1.53 | Shop at ECS Tuning | ||||
| 06 | Clip | 2 | 09/2001 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 07 | Brake hose front | 2 | 09/2001 | 34326766966 | $46.95 | Shop at ECS Tuning | ||||
| 08 | Bracket, brake pipe, 4-fold | 1 | 09/2001 | 34301165471 | $1.85 | Shop at ECS Tuning | ||||
| 10 | Brake pipe bracket | 1 | 09/2001 | 34301165382 | $0.90 | Shop at ECS Tuning | ||||
| 11 | Bracket, brake pipe, 5-fold | 2 | 09/2001 | 34301164313 | $2.23 | Shop at ECS Tuning | ||||
| 12 | Left ABS/BVA tube bracket | 1 | 09/2001 | 34526780591 | $1.82 | Shop at ECS Tuning | ||||
| 12 | Right ABS/BVA tube bracket | 1 | 09/2001 | 34526780592 | $1.82 | Shop at ECS Tuning |
