Brake pipe rear ABS/ASC+T for BMW 3 Series E46 328i (2000)

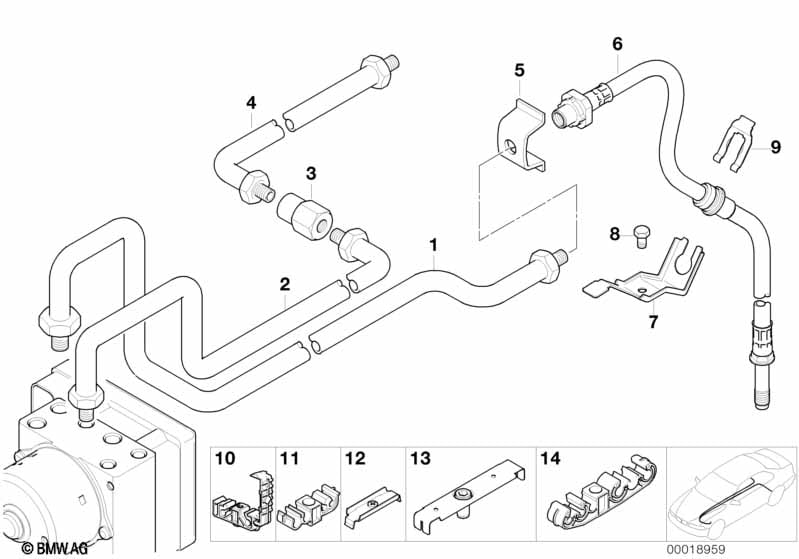

This Brake pipe rear ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M12-3635MM | 1 | 09/2001 | 34326754940 | $17.68 | Shop at ECS Tuning | |||
| 02 | Pipe | M10/M10-3798MM | 1 | 10/1999 | 09/2001 | 34326755704 | $14.13 | Shop at ECS Tuning | ||
| 03 | Intermediate piece | M10X1 | 1 | 09/2001 | 34326757282 | $4.08 | Shop at ECS Tuning | |||
| 04 | Pipe | M10/M10-1206MM | 1 | 09/2001 | 34326766825 | $8.05 | Shop at ECS Tuning | |||
| 05 | Clip | 2 | 09/2001 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 06 | Brake hose rear | 2 | 09/2001 | 34301165174 | $39.55 | Shop at ECS Tuning | ||||
| 07 | Brake pipe bracket | 2 | 09/2001 | 34301164003 | $4.00 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 09/2001 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 09 | Retaining spring f brake hose | 2 | 09/2001 | 34306771981 | $0.52 | Shop at ECS Tuning | ||||
| 10 | Bracket, brake pipe, 4-fold | 1 | 09/2001 | 34301165471 | $1.85 | Shop at ECS Tuning | ||||
| 11 | Brake pipe bracket | 1 | 09/2001 | 34301164005 | $0.68 | Shop at ECS Tuning | ||||
| 12 | Bracket | 1 | 09/2001 | 34306773697 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Bracket | 2 | 09/2001 | 16127195327 | $2.12 | Shop at ECS Tuning | ||||
| 14 | Pipe clip | 2 | 09/2001 | 16121183772 | $1.43 | Shop at ECS Tuning |
